Basic Hi-Fi Amplifier
A hi-fi system is offered as standard equipment and is characterized by vehicle-specific tuning to the interior (equalizing) with balanced acoustics.

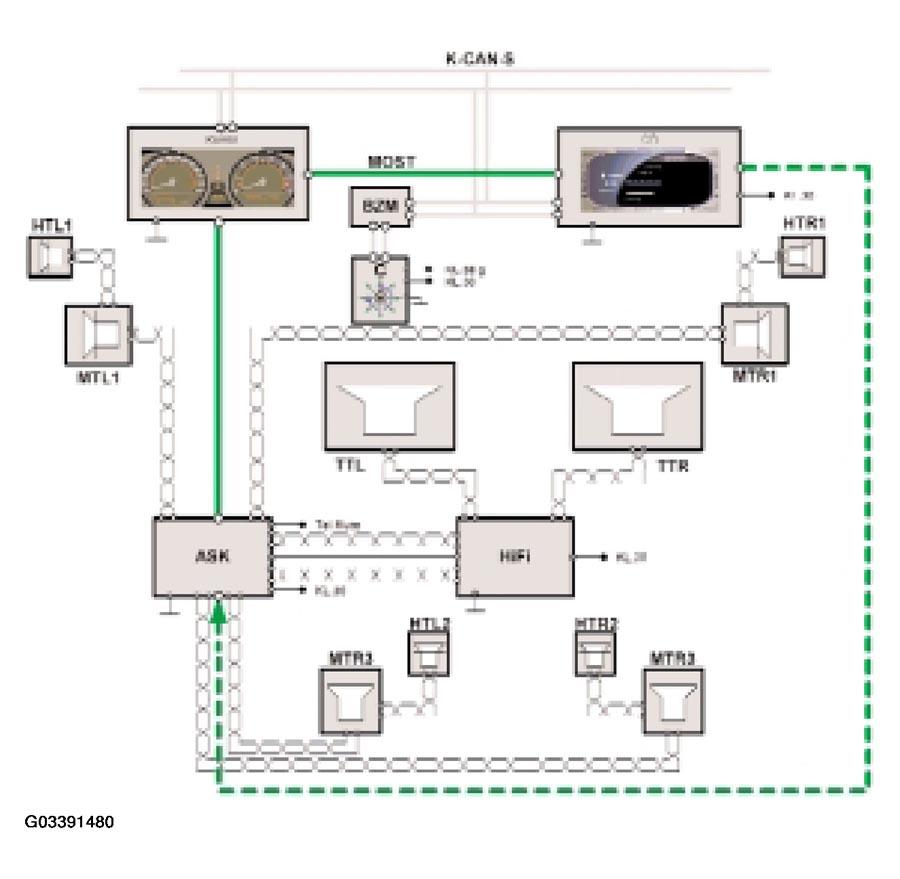

The basic signals delivered by the ASK are amplified in the hi-fi amplifier equipped with bridge end stages. The output power is 40 W per channel. Total system output is 180 watts.
The hi-fi amplifier is controlled by the ASK. The medium-range loudspeakers and the tweeters are directly controlled by the ASK. The large sub-woofers underneath the driver and passenger seats are driven by the amplifier.
The hi-fi amplifier has no diagnosis capability.

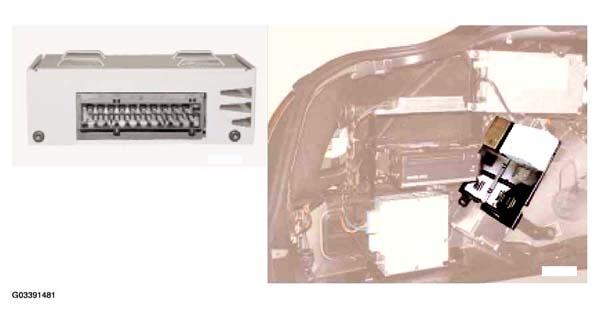

Location of the hi-fi amplifier in the left rear corner of the trunk.
