61 35 220 Removing And Installing (Replacing) Control Unit For Left Or Right Front Door
Necessary Preliminary Tasks:
- Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

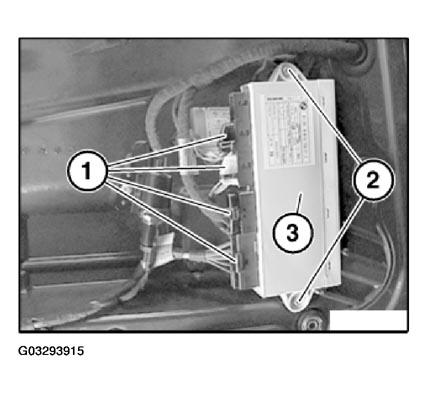

Disconnect plug connections (1).
Release screws (2).
Remove control unit in front door (3).
Replacement:

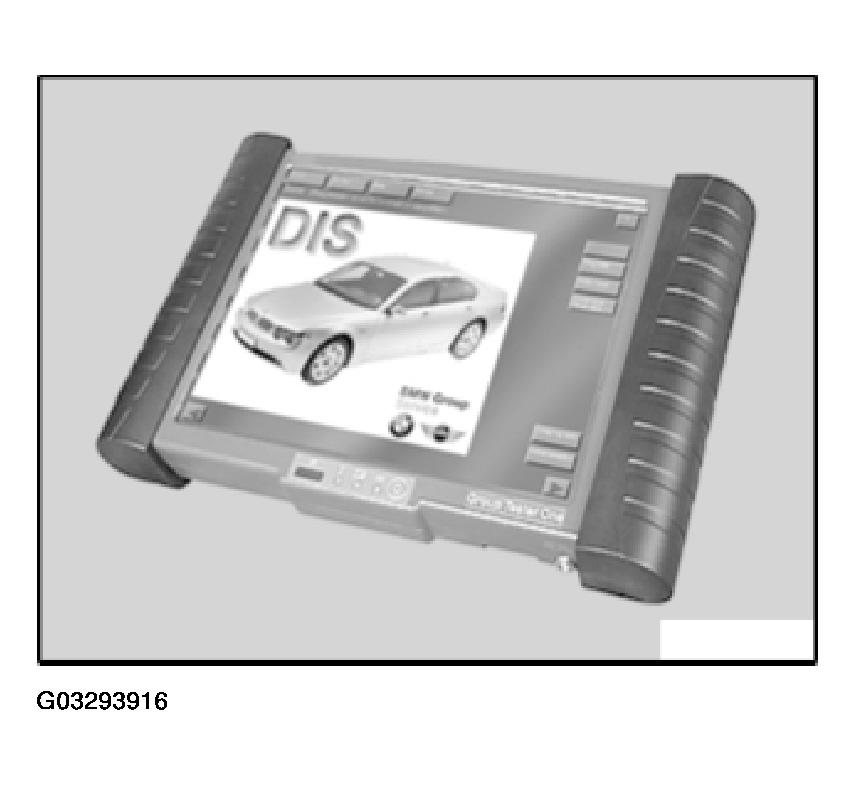

Carry out coding/programming.
Observe following IDC specifications:
- Programming.
- Coding.
- Car & Key Memory.
- CD "CIP".
Replacement:
Initialize control unit in front door. Refer to 67 62... NOTES ON INITIALIZING POWER WINDOW .
