NOTE: Examples of unlocking and disconnecting different plug connections.

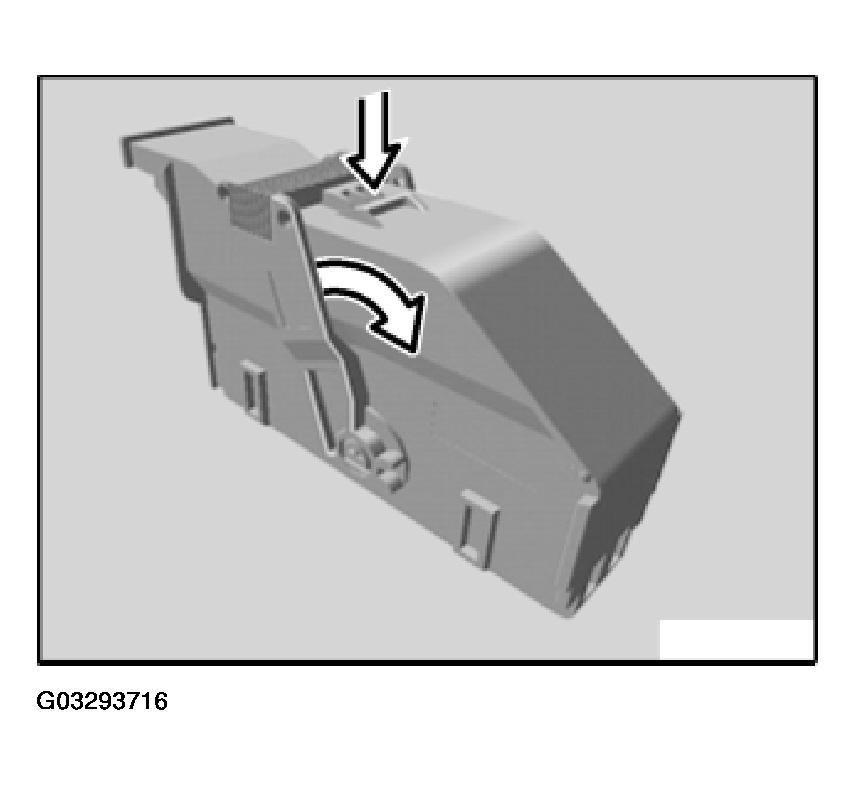

Press lock and open clip in direction of arrow.

Disconnect plug connection.

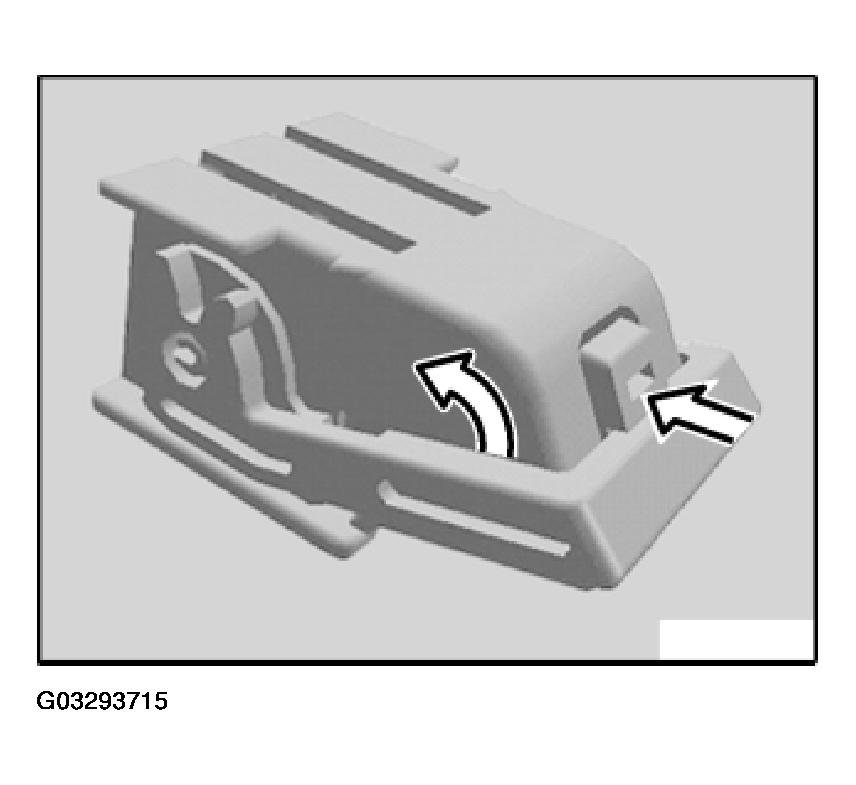

Fig 1: Disconnecting Plug Connection (1 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and open clip in direction of arrow.

Disconnect plug connection.

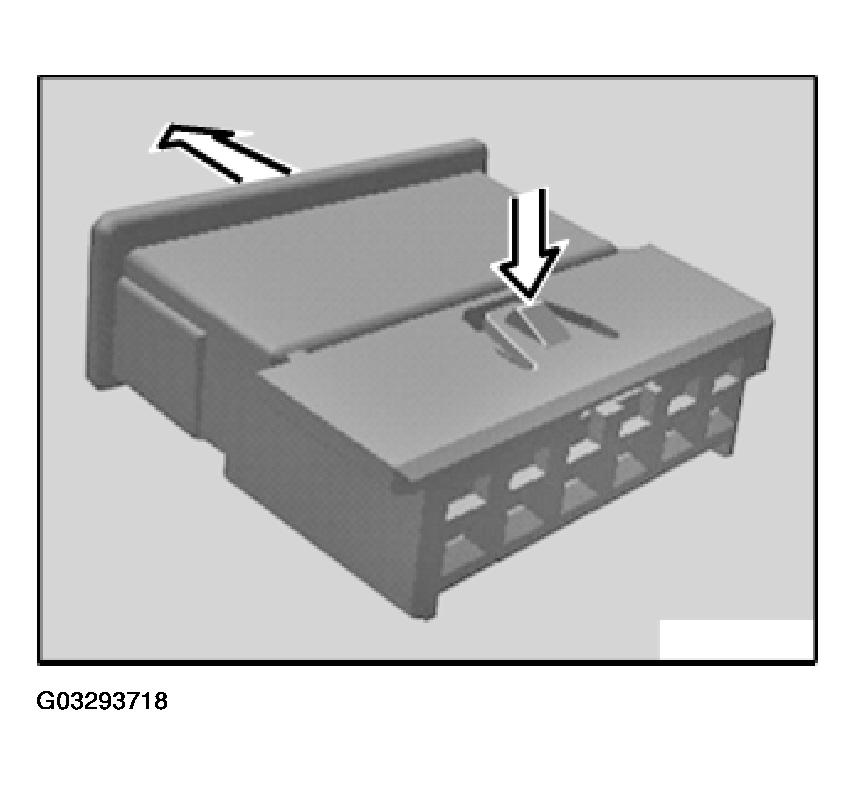

Fig 2: Disconnecting Plug Connection (2 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

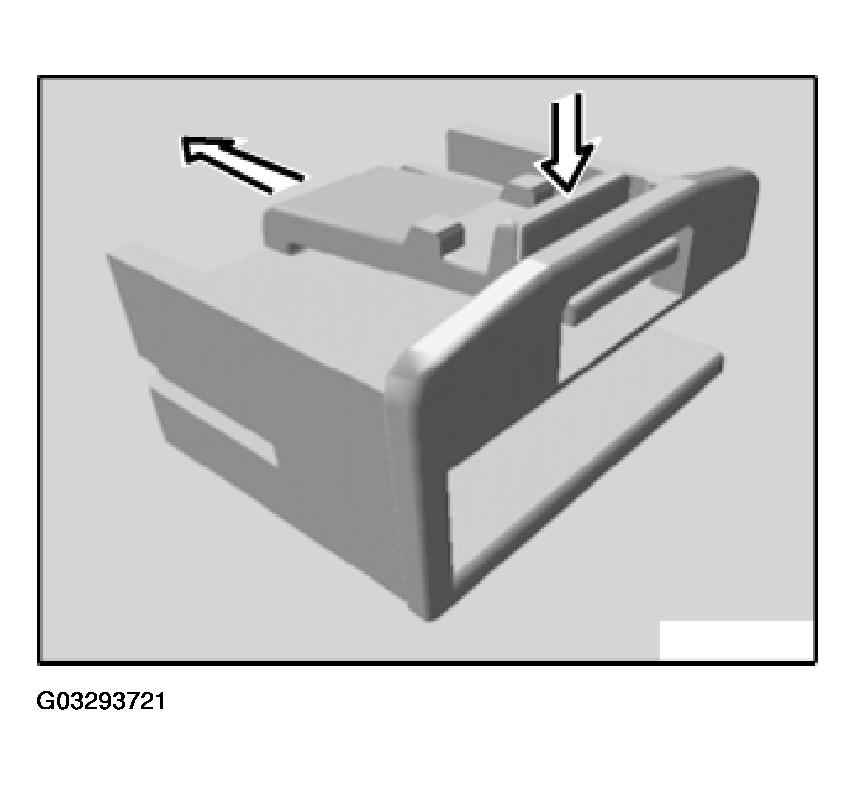

Fig 3: Disconnecting Plug Connection (3 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

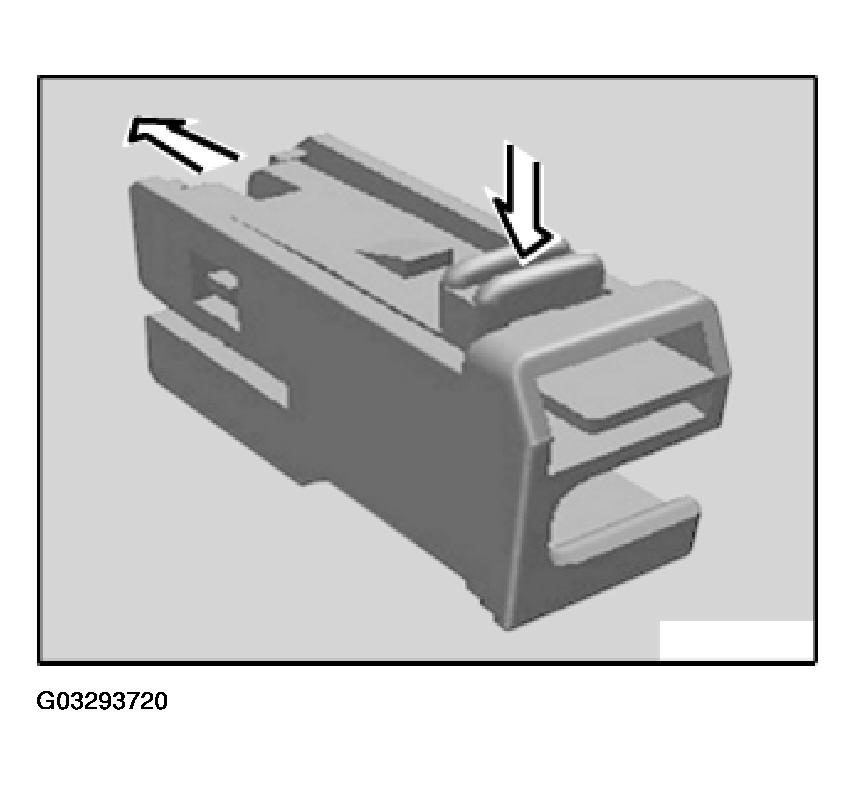

Fig 4: Disconnecting Plug Connection (4 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

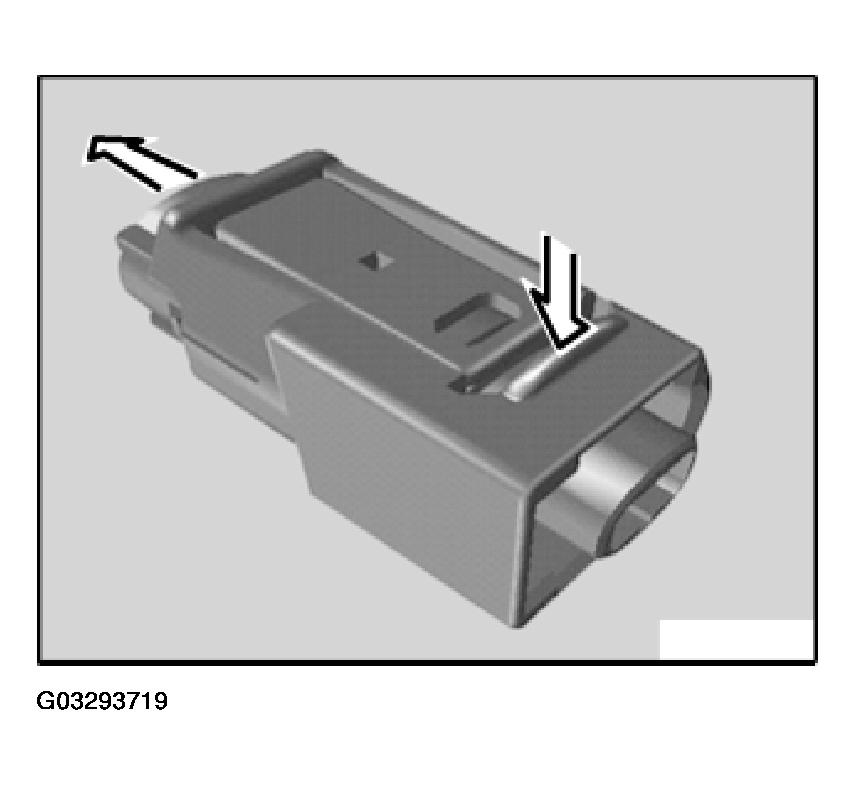

Fig 5: Disconnecting Plug Connection (5 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

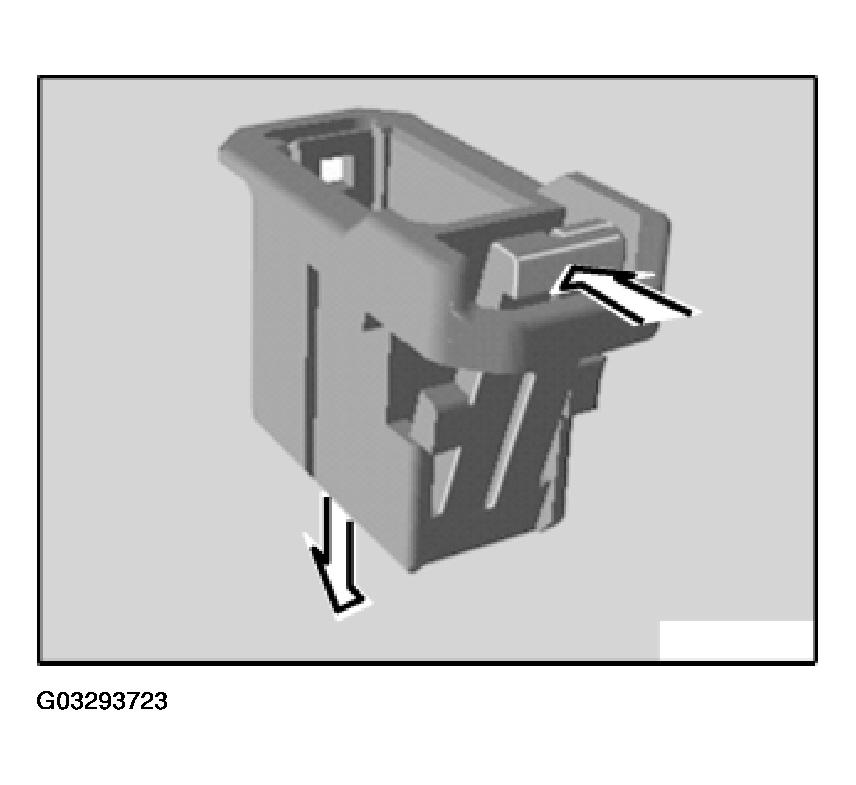

Fig 6: Disconnecting Plug Connection (6 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

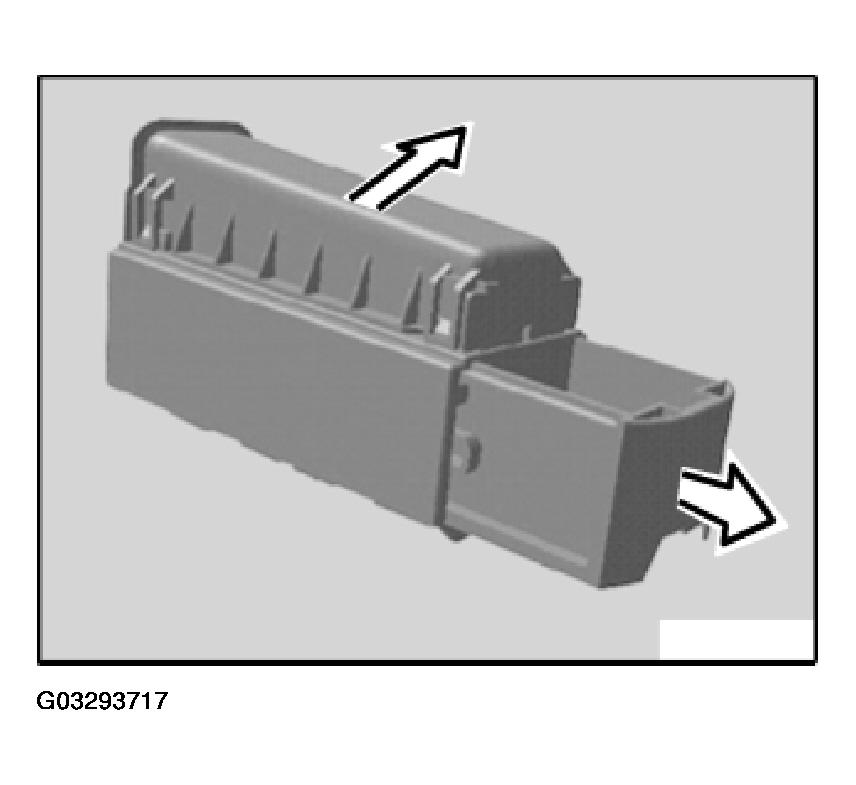

Fig 7: Disconnecting Plug Connection (7 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

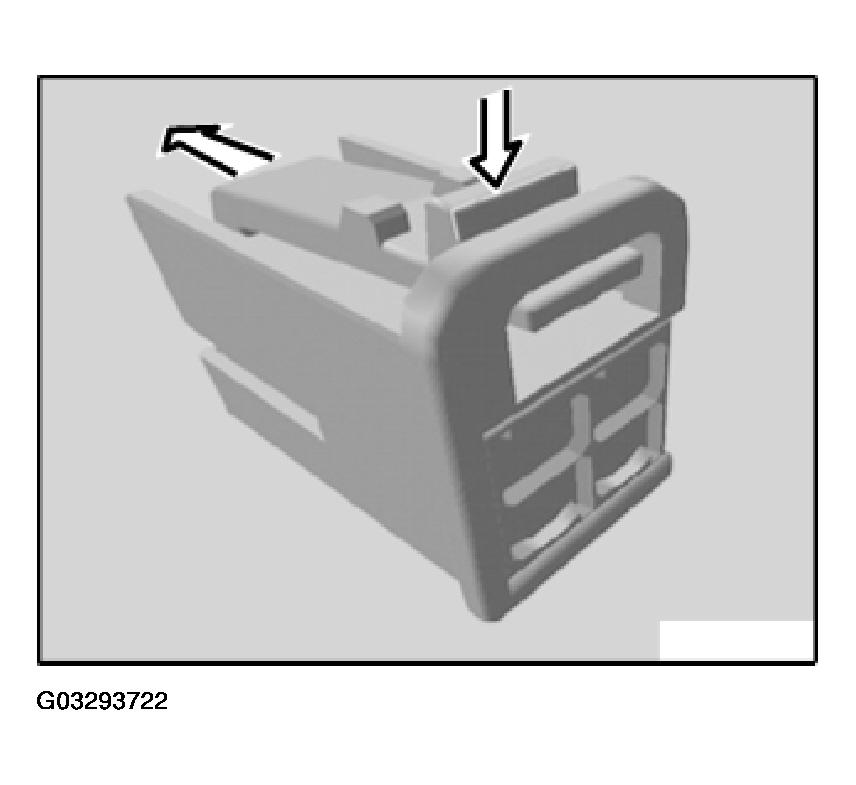

Fig 8: Disconnecting Plug Connection (8 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Disconnecting Plug Connection (9 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.
