2006 BMW 330i Automatic
Purpose of System: IPO
2006 BMW 330i AutomaticSECTION IPO

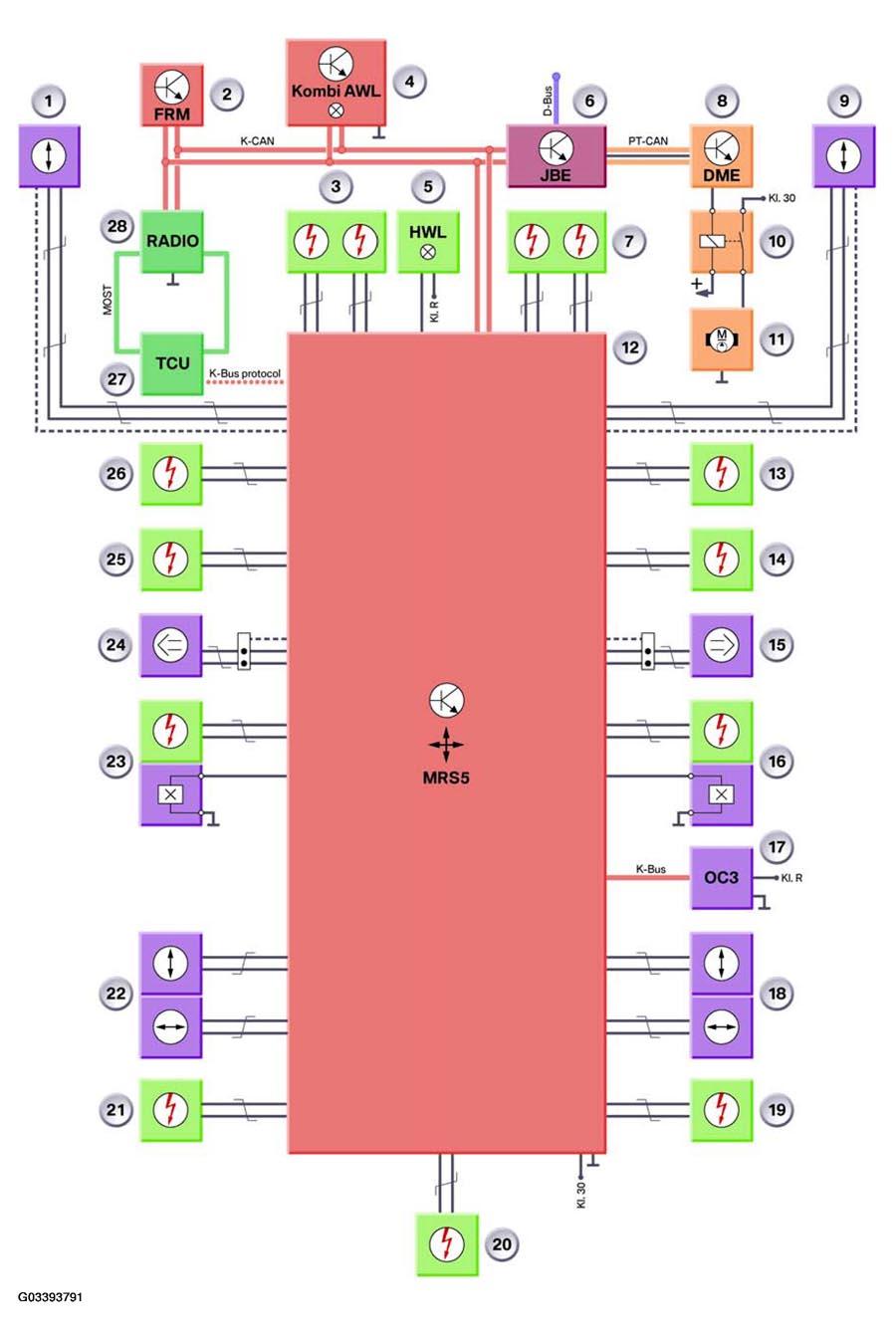

LEGEND FOR IPO
| Index | Explanation | Index | Explanation |
|---|---|---|---|
| 1 | Up front sensor, left | 15 | Door pressure sensor, front right |
| 2 | Footwell module | 16 | Belt buckle status and seat belt tensioner, front right |
| 3 | Driver's airbag (dual stage) | 17 | OC-3 mat with built in analyzer |
| 4 | Instrument cluster | 18 | B-Pillar sensor, right |
| 5 | Airbag indicator lamp (AWL) | 19 | Seat belt tensioner, rear right |
| 6 | Junction Box Electronics Control Module (JBE) | 20 | Battery Safety Terminal |
| 7 | Front passenger's airbag (dual stage) | 21 | Seat belt tensioner, rear left |
| 8 | Engine electronics control unit | 22 | B-Pillar sensor, left |
| 9 | Up front sensor, right | 23 | Belt buckle status and seat belt tensioner, front left |
| 10 | Fuel pump relay (feeds EKP module) | 24 | Door pressure sensor, front left |
| 11 | Fuel pump | 25 | Driver's thorax airbag |
| 12 | MRS5 control unit | 26 | Curtain airbag, left |
| 13 | Curtain airbag, right | 27 | Telematics control unit |
| 14 | Passenger's thorax airbag, front | 28 | RAD2 or CCC |
