2001 BMW M5FACTORY OEM SERVICE PROCEDURE

61 13 .. Unlocking and disconnecting different plug connections

NOTE: Examples of unlocking and disconnecting different plug connections.

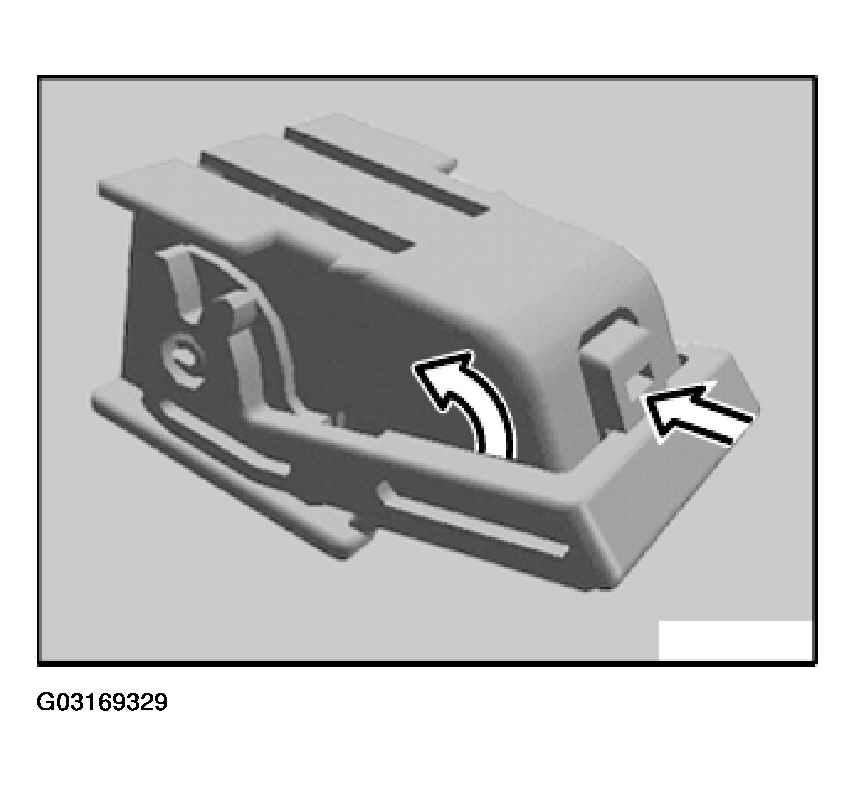

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 1: Identifying Types Of Locks And Plug Connections (1 Of 9)

G03169329

Courtesy of BMW OF NORTH AMERICA, INC.

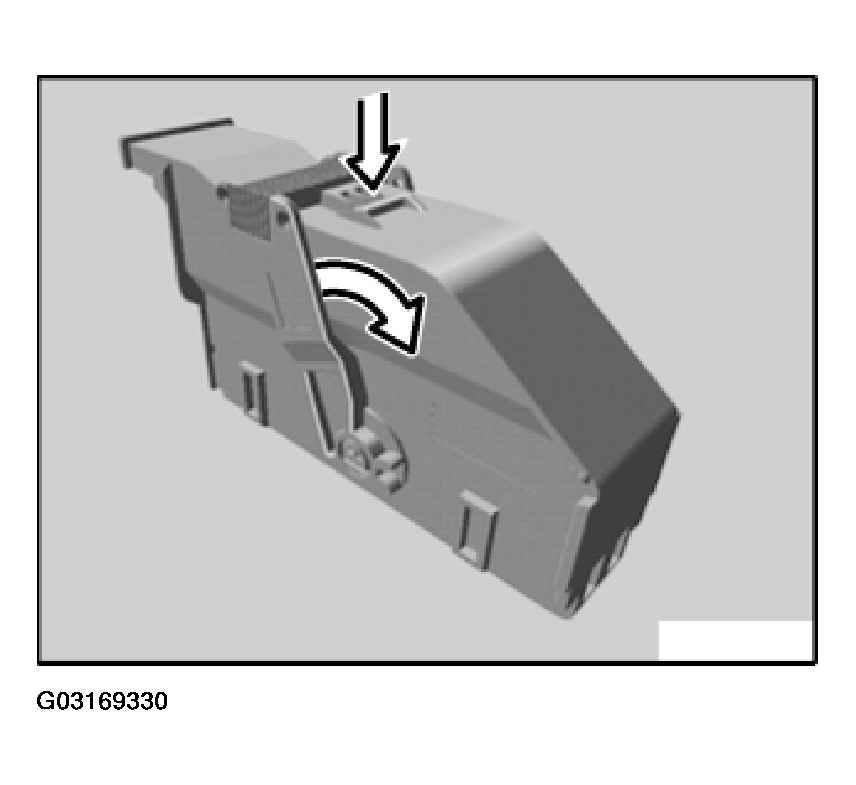

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 2: Identifying Types Of Locks And Plug Connections (2 Of 9)

G03169330

Courtesy of BMW OF NORTH AMERICA, INC.

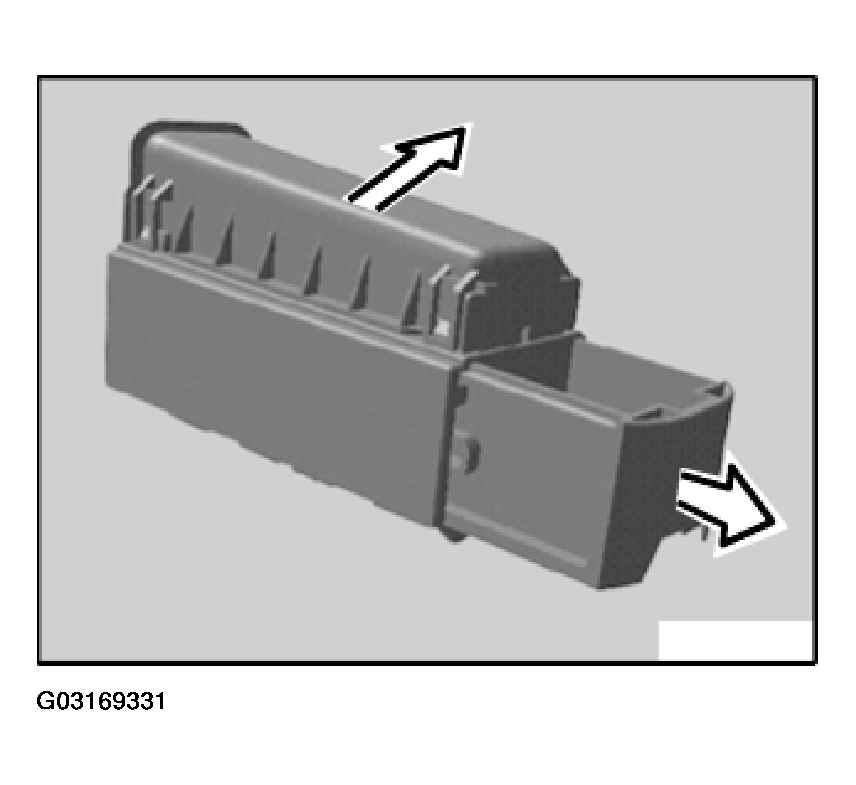

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Identifying Types Of Locks And Plug Connections (3 Of 9)

G03169331

Courtesy of BMW OF NORTH AMERICA, INC.

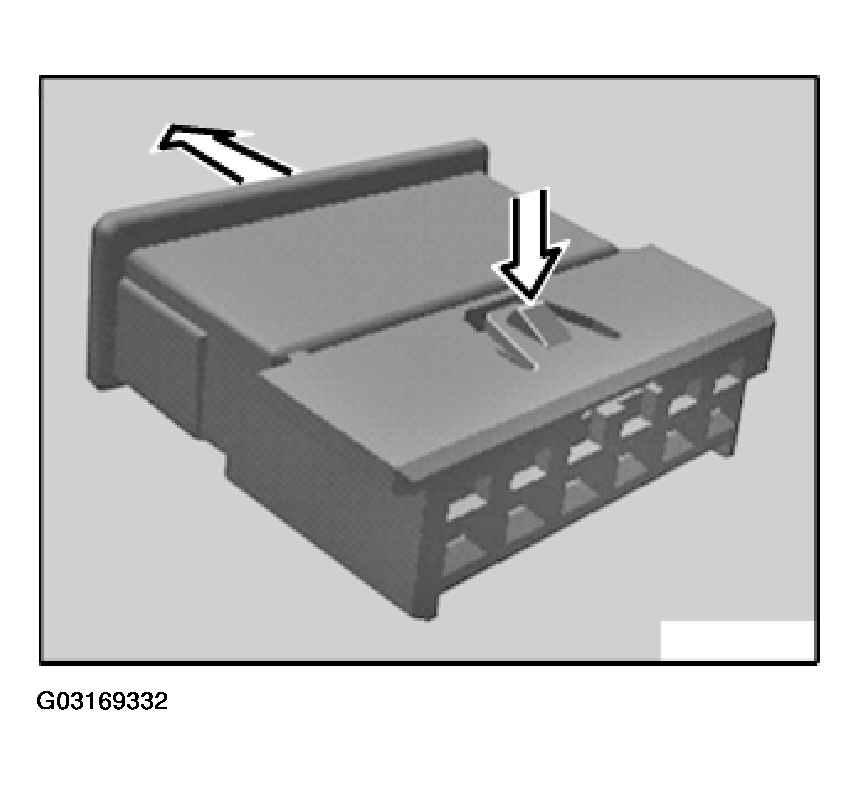

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Identifying Types Of Locks And Plug Connections (4 Of 9)

G03169332

Courtesy of BMW OF NORTH AMERICA, INC.

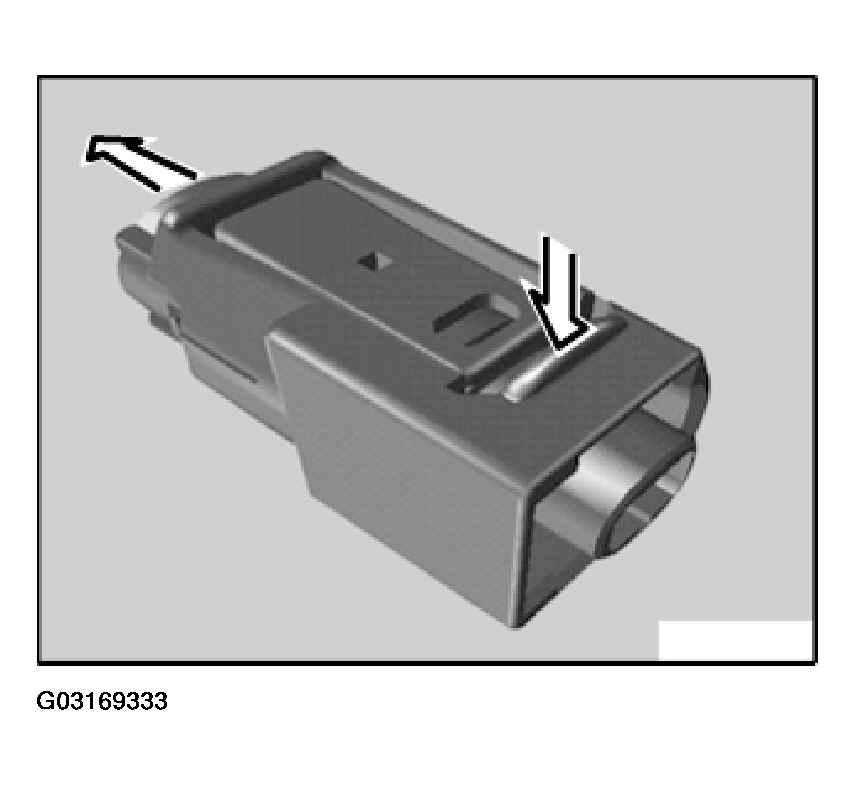

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Identifying Types Of Locks And Plug Connections (5 Of 9)

G03169333

Courtesy of BMW OF NORTH AMERICA, INC.

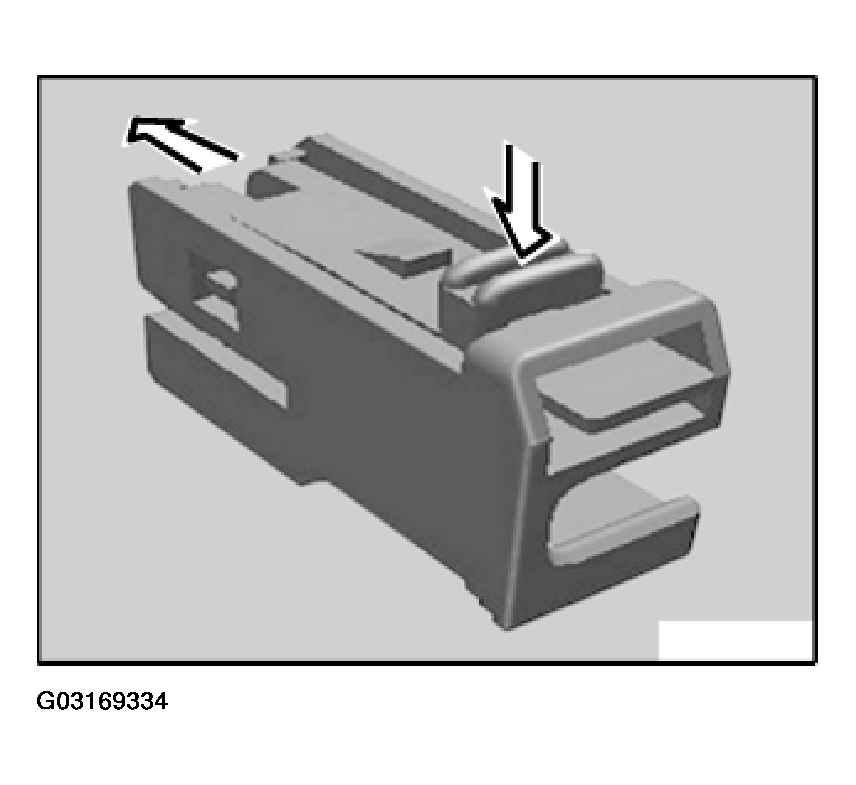

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Identifying Types Of Locks And Plug Connections (6 Of 9)

G03169334

Courtesy of BMW OF NORTH AMERICA, INC.

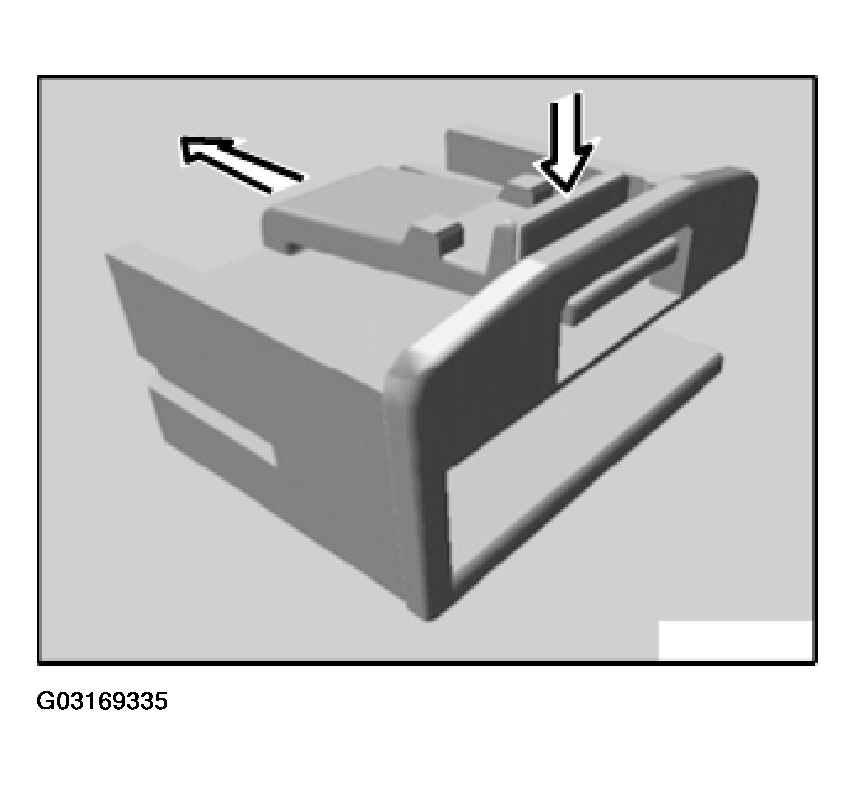

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Identifying Types Of Locks And Plug Connections (7 Of 9)

G03169335

Courtesy of BMW OF NORTH AMERICA, INC.

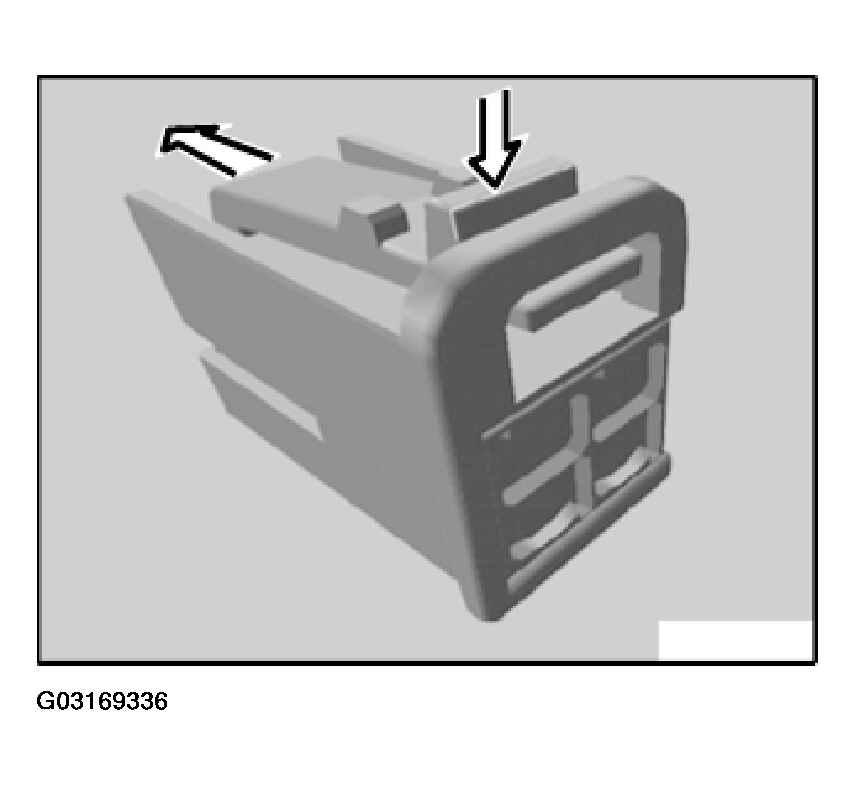

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Identifying Types Of Locks And Plug Connections (8 Of 9)

G03169336

Courtesy of BMW OF NORTH AMERICA, INC.

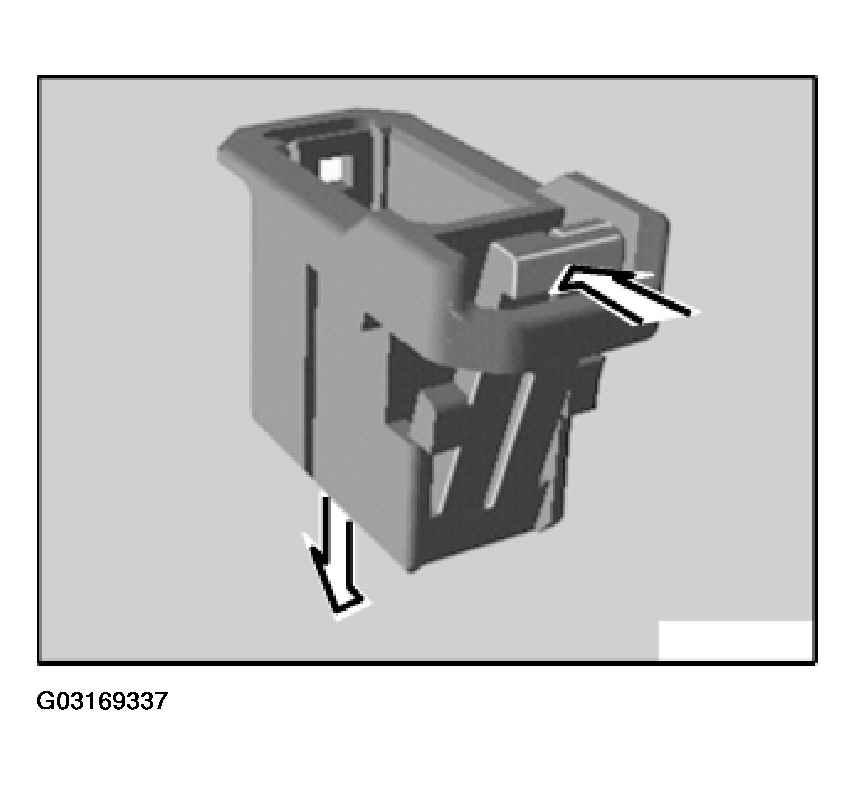

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Identifying Types Of Locks And Plug Connections (9 Of 9)

G03169337

Courtesy of BMW OF NORTH AMERICA, INC.
