61 13 ... Socket housing (radio plug), Hybrid System MQS/MPQ
Manufactured By AMP: The following contact types without strand sealing can be fitted in the plug housings:
- MQS (Micro Quadlock System).
- MPQ, width 2.8 mm (Micro Power Quadlock).
- MPQ, width 5.2 mm (Micro Power Quadlock).
Removing MPQ Contacts From Radio Plug:

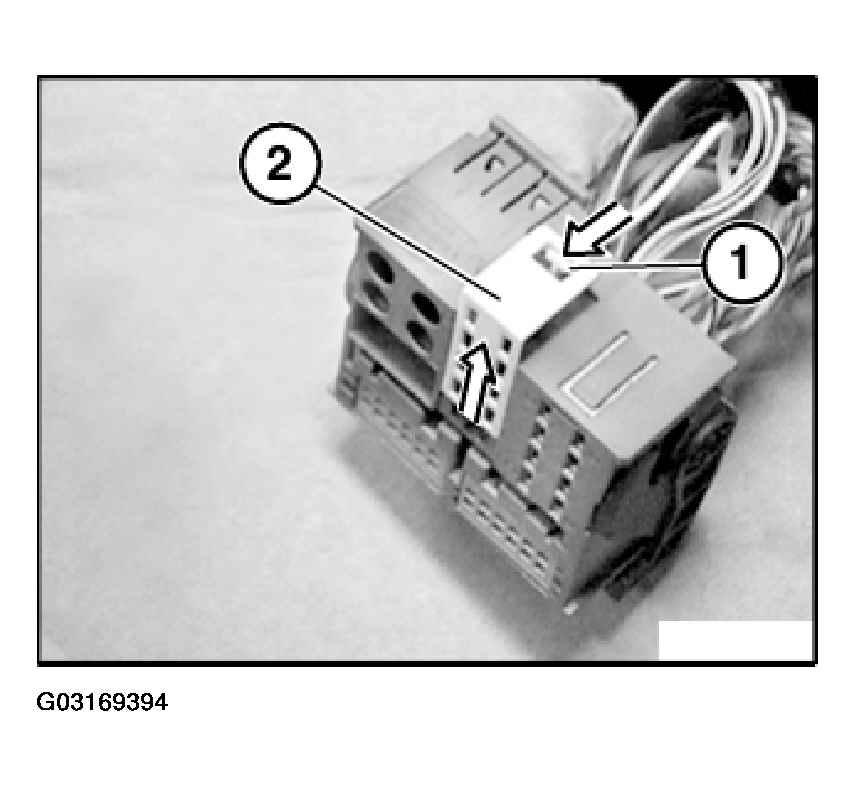

Press lock (1) in direction of arrow.
Detach secondary lock (2) from radio plug.

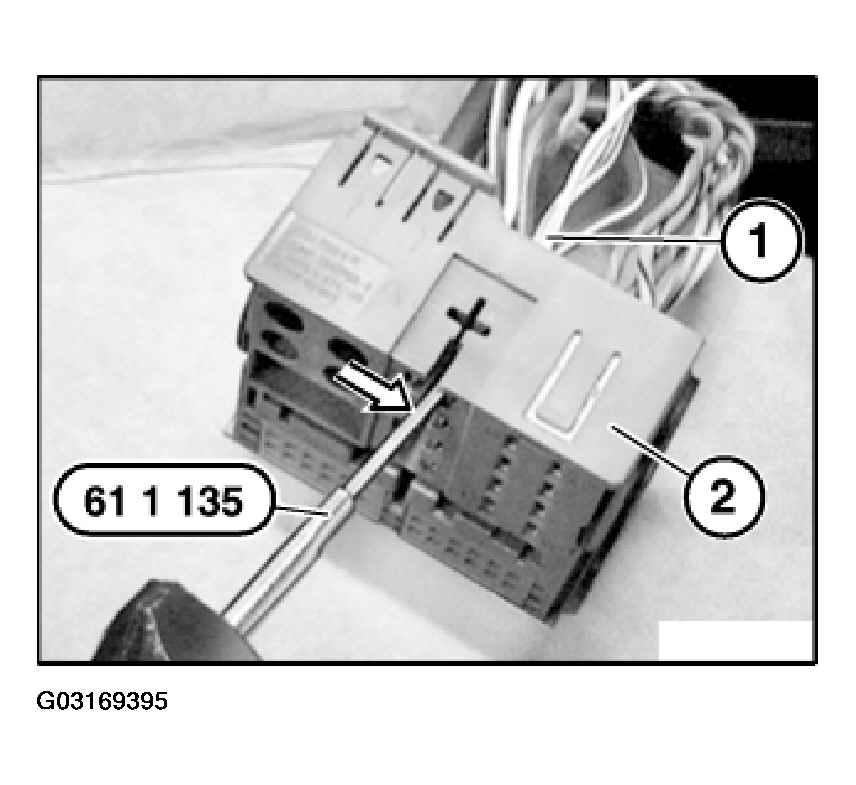

Feed special tool 61 1 135 past side of contact.
Press special tool 61 1 135 in direction of arrow.
Pull wire (1) with socket contact out of radio plug (2).
Removing MQS Contacts From Contact Carrier:

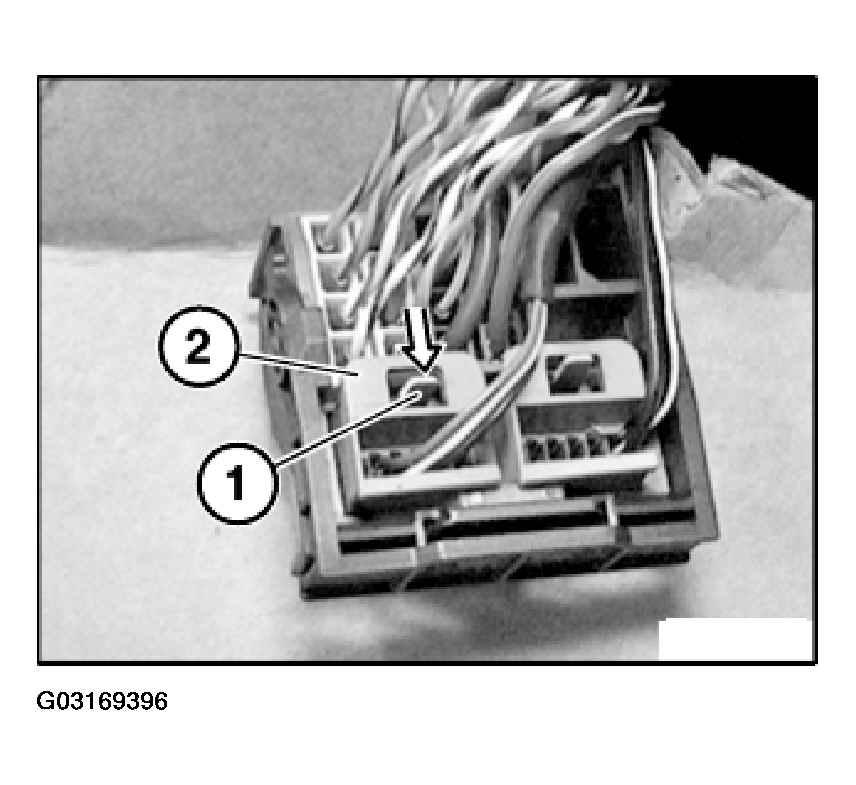

Press lock (1) in direction of arrow and pull housing (2) out of radio plug.
Press lock (1) in direction of arrow. Pull contact carrier (2) out of housing (3).
