System Components

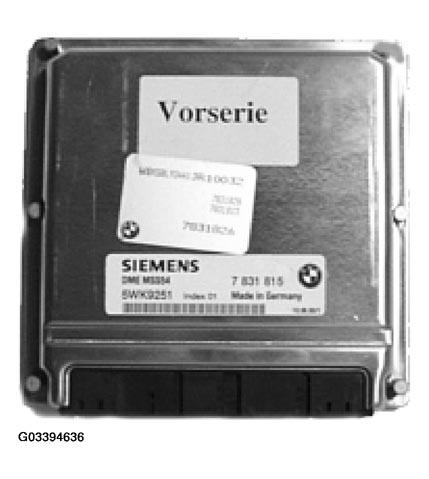

MS S54 Engine Control Module: The MS S54 ECM features a single printed circuit board with two 32-bit microprocessors.
The task of the first processor is to control:
- Engine Load
- Electronic Throttle (EDR)
- Idle actuator
- Ignition
- Knock Control
The task of the second processor is to control:
- Air/Fuel Mixture
- Emission Control
- Misfire Detection
- DMTL
