Planetary Gear Set: Notes
Planetary gear seats are compact gear units that receive input drive torque and provide the required output ratios for all forward gears and reverse gear. The planetary gear set consists of four main components:
- Internal Ring Gear
- Planetary Gears (pinions)
- Sun Gear
- Planetary Gear Carrier

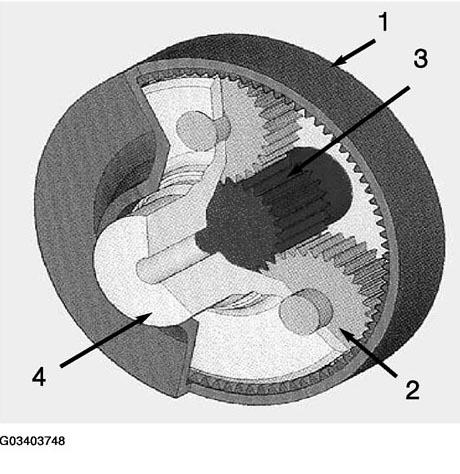

Various ratios are obtained by driving or holding different components in the planetary gear set. The example shown at right is a simple planetary gear set. Today's modern transmissions use a combination of multiple planetary gear sets referred to as a compound planetary gear set.
