Functional Description: Notes

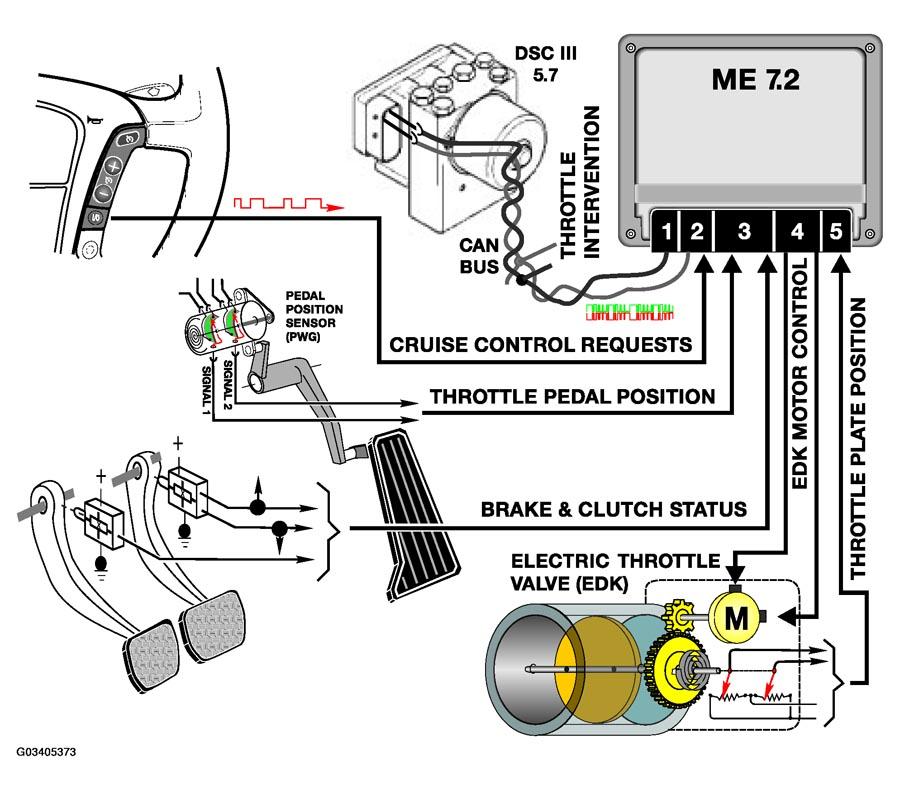

When the accelerator pedal is moved, the PWG provides a change in the monitored signals. The ME 7.2 compares the input signal to a programmed map and appropriately activates the EDK motor via proportionally high/low switching circuits. The control module self checks it's activation of the EDK motor via the EDK feedback potentiometers.
Requirements placed on the Electric Throttle System:
- Regulate the calculated intake air load based on PWG input signals and programmed mapping.
- Control idle air when LL detected with regard to roadspeed as per previous systems.
- Monitor the driver's input request for cruise control operation.
- Automatically position the EDK for accurate cruise control (FGR) operation.
- Perform all DSC III throttle control interventions.
- Monitor and carryout max engine and roadspeed cutout.
