1987 BMW 325es (E30) L6-2693cc 2.7L SOHC (M20)
Active Check Control Unit
1987 BMW 325es (E30) L6-2693cc 2.7L SOHC (M20)SECTION Active Check Control Unit
Center Of Windshield Header, Above Rear View Mirror:

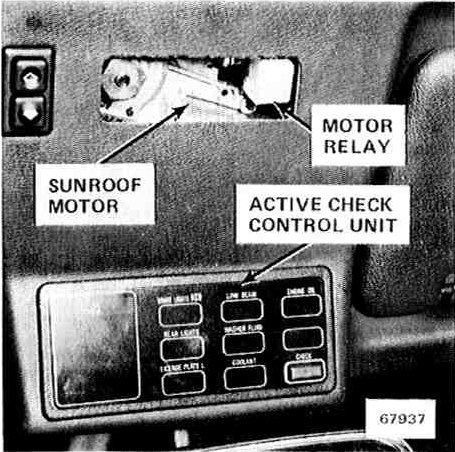

Component Location View:
Component ID: Active Check Control Unit
Location: Above rear view mirror
