Power Window Switch Test: Test

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

Power Window Master Switch

1. Driver's Power Window Switch - Test

   Preconditions

   • Driver's Door Armrest Assy. Removed

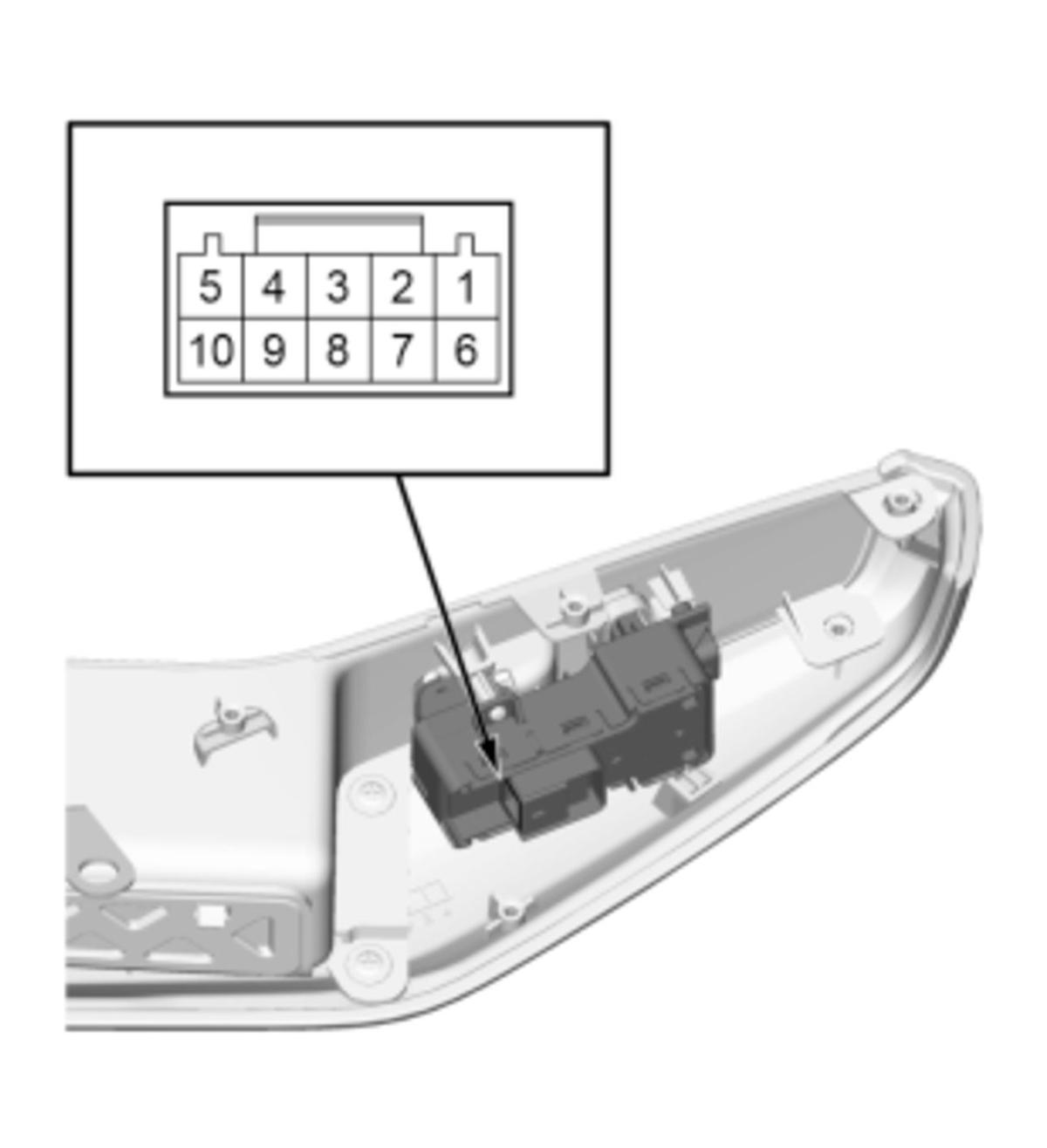

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

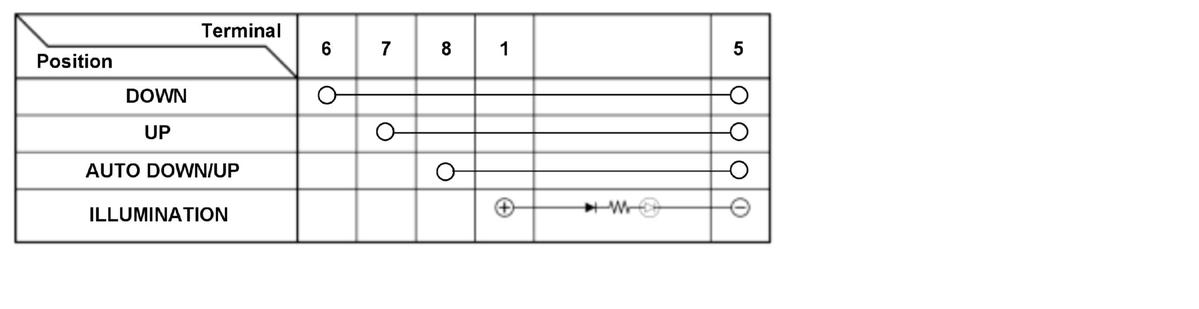

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1 and 2)

   Result

   • If the result is not as specified, replace the power window master switch .

   After Inspection

   • Power Window Control Unit Reset

   Front Passenger's Power Window Switch

2. Front Passenger's Power Window Switch - Test

   Preconditions

   • Front Door Armrest Assy. Removed

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1 and 2)

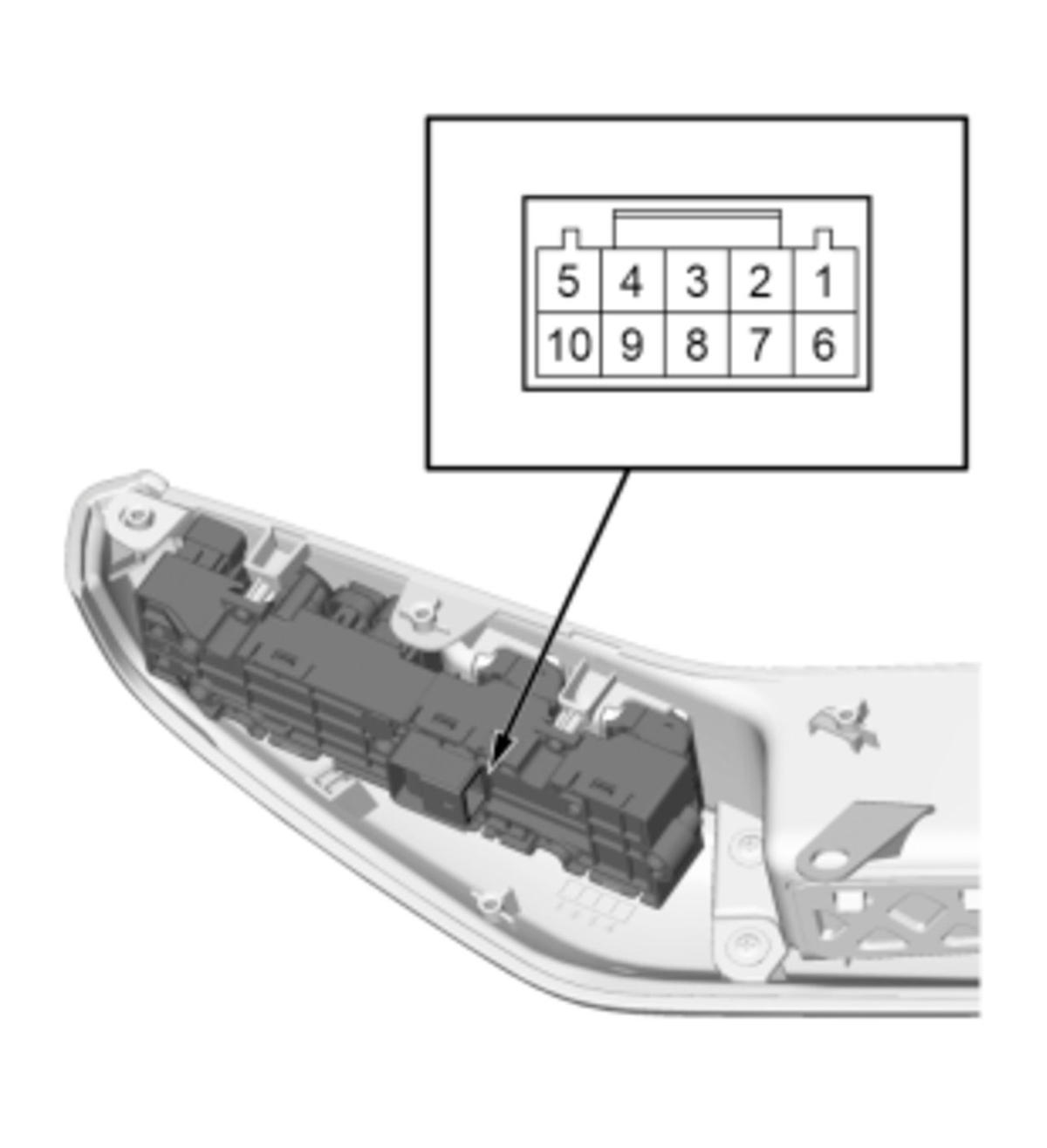

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

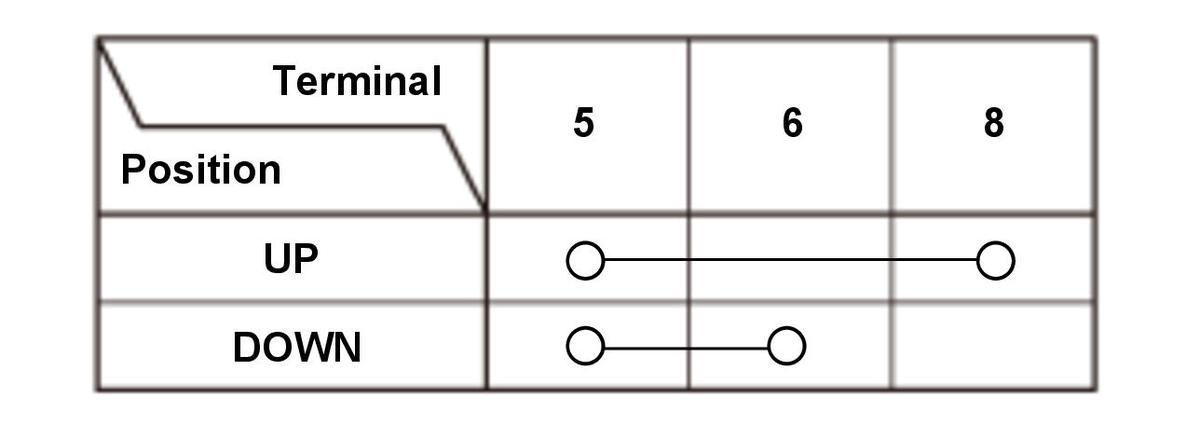

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the front passenger's power window switch .

   After Inspection

   • Power Window Control Unit Reset

   Rear Power Window Switch

3. Rear Power Window Switch - Test

   Preconditions

   • Rear Door Armrest Assy. Removed

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1 and 2)

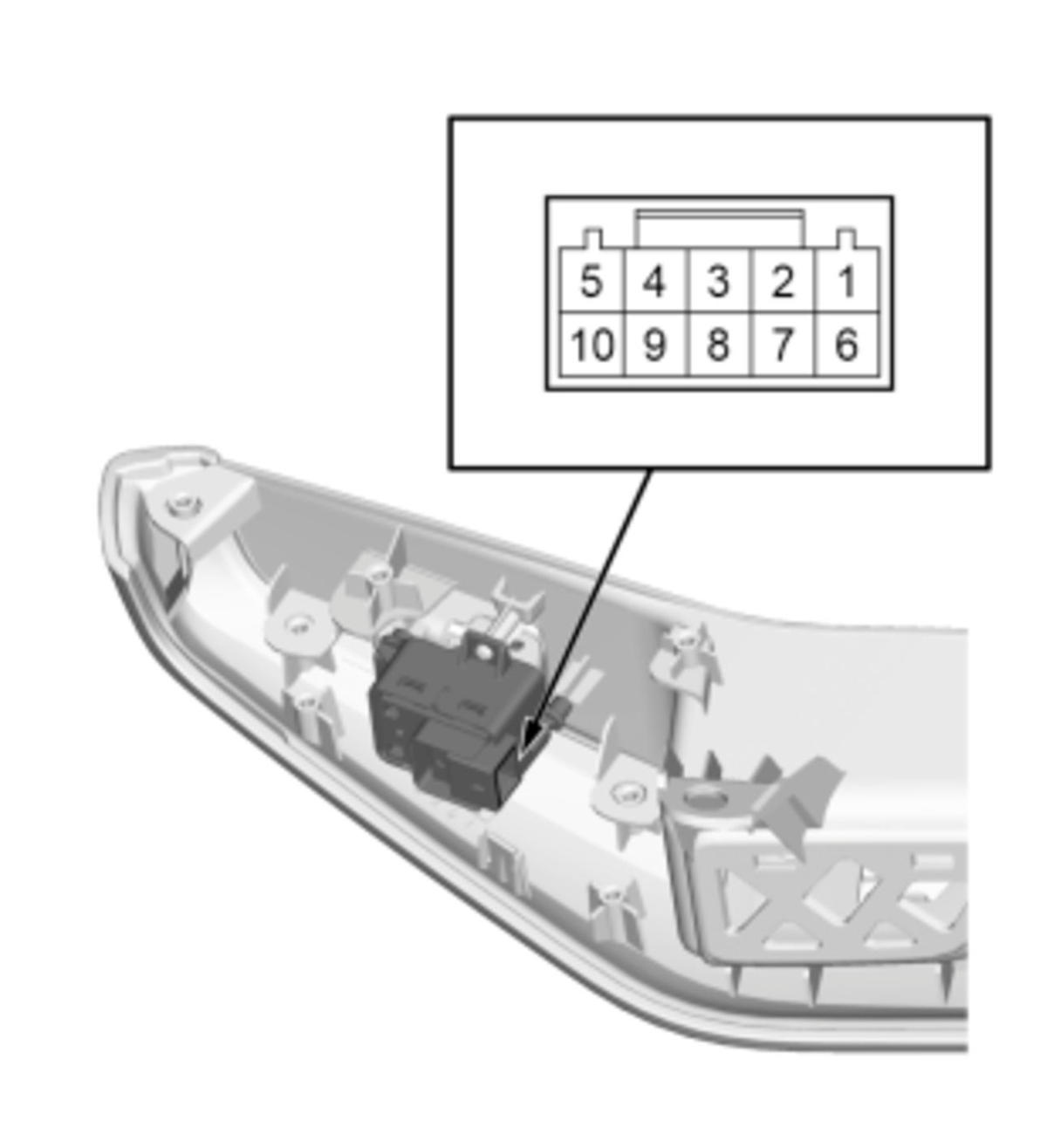

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the rear power window switch .

   After Inspection

   • Power Window Control Unit Reset
