Power Relay Test: Test

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

1. Power Relay - Test

   Preconditions

   • Relay Removed

   Procedure/Specifications

   Use this chart to identify the type of relay, then do the test listed for it.

   Relay	Test
   Active control engine mount (ACM) control relay (3.5 L engine)	Normally-open four-terminals type
   A/C condenser fan relay (3.5 L engine)
   Cargo area accessory power socket relay
   DC-DC converter ACC relay ('22-24 USA and Canada models/'25)
   DC-DC converter IG1 relay 1
   DC-DC converter IG1 relay 2
   Electronic throttle control system (ETCS) control relay (3.5 L engine)
   Front console accessory power socket relay ('22-24)
   Horn relay
   Injector relay
   Left second row seat with one-touch access relay
   PGM-FI main relay 1
   RFC relay 1 (3.0 L engine)
   RFC relay 2 (3.0 L engine)
   Radiator fan relay (3.5 L engine)
   Right second row seat with one-touch access relay
   SH-AWD relay (With AWD)
   Fan control relay (3.5 L engine)	Five-terminals type

   Normally-Open Four-Terminals Type

   Check the relay according to the table. (Figure 1 and 2)

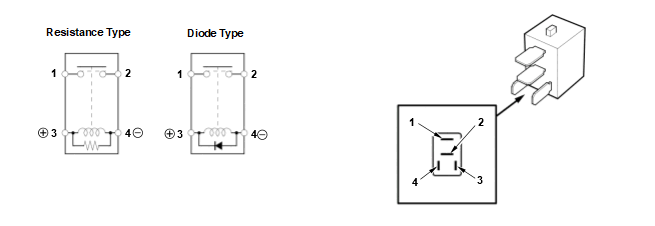

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

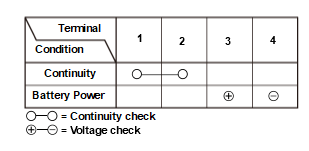

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Five-Terminals Type

   • Check the relay according to the table. (Figure 3, 4, and 5)

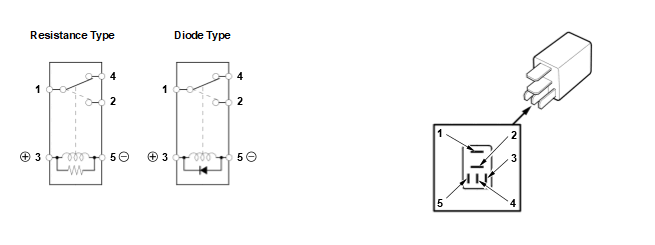

   Figure 3 (Battery power is not applied)

   Courtesy of HONDA, U.S.A., INC.

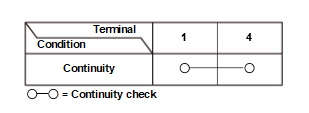

   Figure 4 (Battery power is applied)

   Courtesy of HONDA, U.S.A., INC.

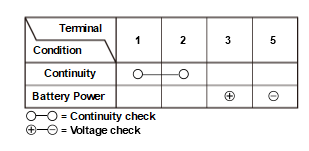

   Figure 5

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the power relay.
