Shift Cable Replacement

2012 Acura TL BaseSECTION Shift Cable Replacement

Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Move the shift lever to R.
Remove the nut securing the shift cable end.

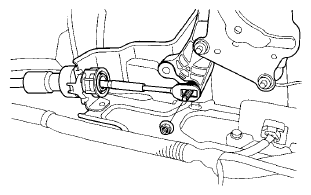

Fig 1: Removing Nut Securing Shift Cable End
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Unlock the retainer lock (A).

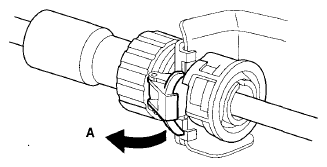

Fig 2: Unlock Retainer Lock
Courtesy of AMERICAN HONDA MOTOR CO., INC.

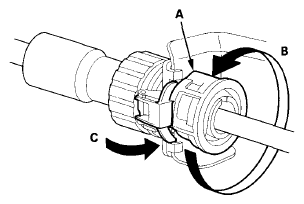

Rotate the socket holder retainer (A) counterclockwise (B) until it stops, and push the retainer lock (C) into the socket holder retainer to lock the retainer.

Fig 3: Rotating Socket Holder Retainer Counterclockwise
Courtesy of AMERICAN HONDA MOTOR CO., INC.

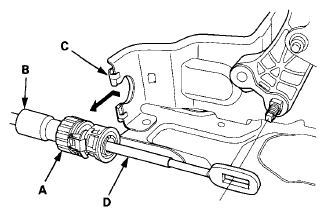

Slide the socket holder (A) away from the bracket as shown to remove the shift cable (B) from the socket holder bracket (C). Do not remove the shift cable by pulling the shift cable guide (D).

Fig 4: Identifying Socket Holder, Shift Cable, Socket Holder Bracket And Shift Cable Guide
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the air cleaner (see THROTTLE BODY CLEANING ).
Remove the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).

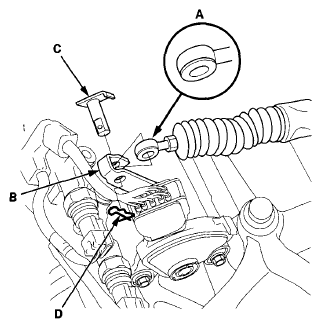

Remove the spring clip (A) and the control pin (B), then separate the shift cable end (C) from the control lever (D).

Fig 5: Identifying Spring Clip, Control Pin, Shift Cable End And Control Lever
Courtesy of AMERICAN HONDA MOTOR CO., INC.

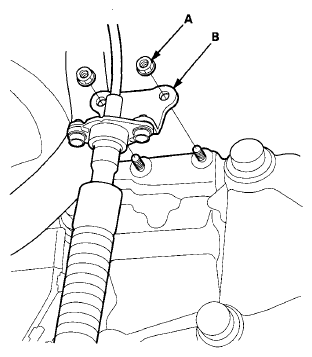

Remove the nuts (A) securing the shift cable bracket (B).

Fig 6: Identifying Shift Cable Bracket And Nuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Raise the vehicle on a lift, or apply parking brake, block both rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
Remove the heat shield.
With SH-AWD

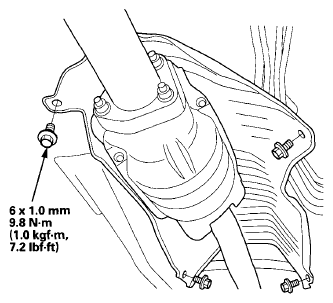

Fig 7: Heat Shield With Torque Specifications (With SH-AWD)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without SH-AWD

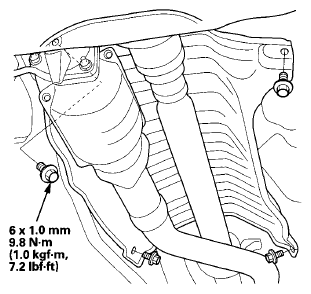

Fig 8: Heat Shield With Torque Specifications (Without SH-AWD)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolt securing the shift cable bracket (A).
With SH-AWD

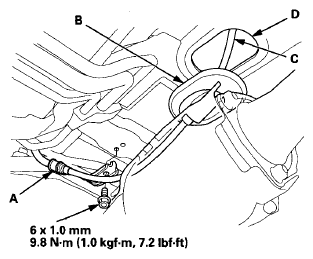

Fig 9: Cable Bracket, Cable Grommet, Shift Cable And Grommet Hole With Torque Specifications (With SH-AWD)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without SH-AWD

Fig 10: Cable Bracket, Cable Grommet, Shift Cable And Grommet Hole With Torque Specifications (Without SH-AWD)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the shift cable grommet (B), and pull out the shift cable (C).
Insert a new shift cable through the grommet hole (D), and install the grommet in its hole. Do not bend the shift cable excessively.
Secure the shift cable bracket with the bolt.
Install the heat shield.

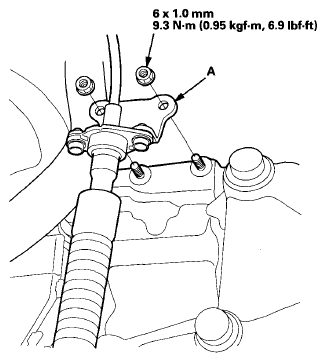

Install the shift cable bracket (A).

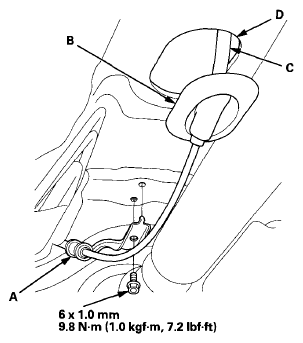

Fig 11: Installing Shift Cable Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

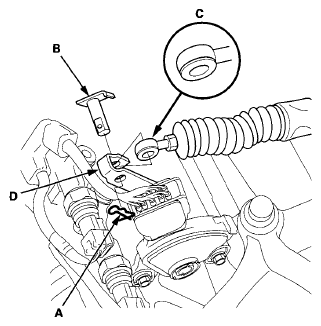

Attach the shift cable end (A) to the control lever (B), then insert the control pin (C) into the control lever hole through the shift cable end, and secure the control pin with the spring clip (D).

Fig 12: Identifying Shift Cable End, Control Lever, Control Pin And Spring Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
Install the air cleaner (see THROTTLE BODY CLEANING ).
Adjust the shift cable (see SHIFT CABLE ADJUSTMENT ).
