2012 Acura TL BaseFACTORY OEM SERVICE PROCEDURE

ATF Temperature Sensor Replacement

  1. Raise the vehicle on a lift, or apply the parking brake, block both rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
  2. Remove the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
  3. Remove the drain plug (A), and drain the automatic transmission fluid (ATF).

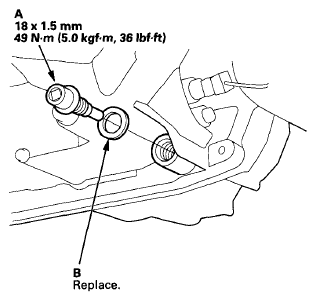

    Fig 1: Drain Plug And Automatic Transmission Fluid (ATF) With Torque Specifications
    G08066474Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Reinstall the drain plug with a new sealing washer (B).
  5. Disconnect the ATF temperature sensor connector (A), then remove the ATF temperature sensor (B).

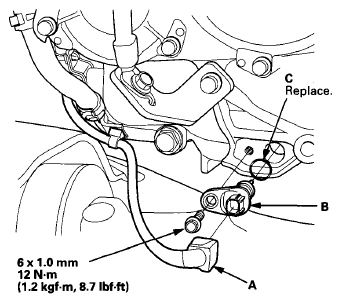

    Fig 2: ATF Temperature Sensor Connector And ATF Temperature Sensor With Torque Specifications
    G08066475Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install a new O-ring (C) on a new ATF temperature sensor, and install the ATF temperature sensor.
  7. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  8. Refill the transmission with ATF (see ATF REPLACEMENT  ).
  9. Install the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
