2012 Acura TL BaseFACTORY OEM SERVICE PROCEDURE
ATF Replacement
NOTE:
Keep all foreign particles out of the transmission.
- Park the vehicle on the level ground.
- Warm up the engine to normal operating temperature (the radiator fan comes on), and turn the engine off.
- Raise the vehicle on a lift, make sure it is securely supported.
- Remove the air cleaner (see THROTTLE BODY CLEANING ).
- Remove the intake air duct (see INTAKE MANIFOLD REMOVAL AND INSTALLATION ).

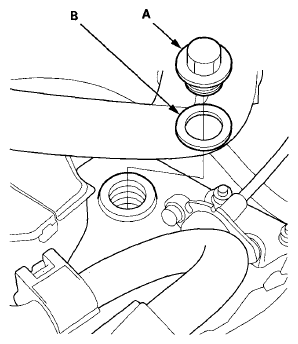

- Remove the ATF filler bolt (A) and the sealing washer (B).
- Remove the drain plug (A), and drain the automatic transmission fluid (ATF).NOTE: If a cooler cleaning is necessary, refer to the ATF COOLER CLEANING .
