2008 Acura TSX L4-2.4L
General Specifications
2008 Acura TSX L4-2.4LSECTION General Specifications

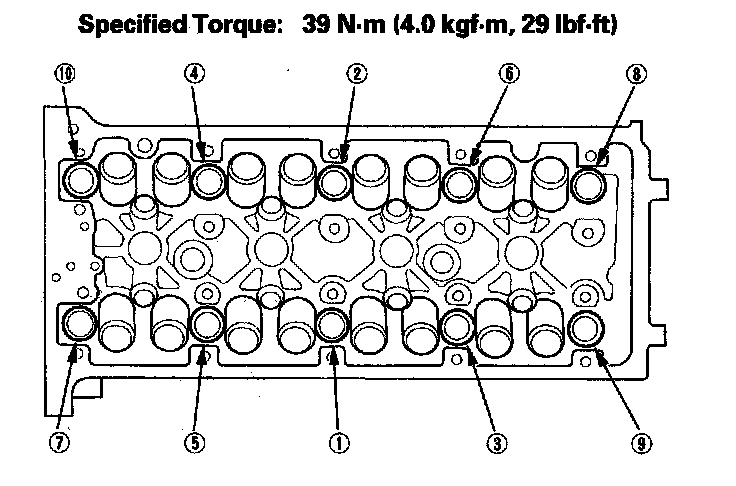

Cylinder Head
After torquing, tighten all cylinder head bolts in two steps (90°per step). If you are using a new cylinder head bolt, tighten the bolt an extra 90°

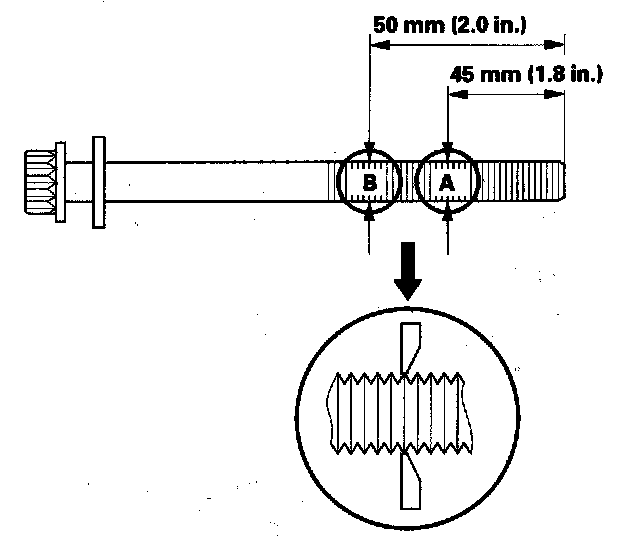

Head Bolt
Measure the diameter of each cylinder head bolt at point A and point B.
If either diameter is less than 10.6 mm (0.42 in.), replace the cylinder head bolt.
Intake Manifold
Camshaft Bearing/Holder
Main Bearing
Torque 30 Nm (3.0 kgf-m, 22 lbf-ft) +56°
Rod Bearing
Torque 36 Nm (3.7 kgf-m, 27 lbf-ft) +120°
Crankshaft Pulley
Torque 50 Nm (5.0 kgf-m, 37 lbf-ft)
Tighten additional 90°
Oil Pump
Exhaust Manifold
Tighten the bolts/nuts in a crisscross pattern in three steps, beginning with the inner nut.
Water Pump
After torquing, tighten all cylinder head bolts in two steps (90°per step). If you are using a new cylinder head bolt, tighten the bolt an extra 90°
Head Bolt
Measure the diameter of each cylinder head bolt at point A and point B.
If either diameter is less than 10.6 mm (0.42 in.), replace the cylinder head bolt.
Intake Manifold
Camshaft Bearing/Holder
Main Bearing
Torque 30 Nm (3.0 kgf-m, 22 lbf-ft) +56°
Rod Bearing
Torque 36 Nm (3.7 kgf-m, 27 lbf-ft) +120°
Crankshaft Pulley
Torque 50 Nm (5.0 kgf-m, 37 lbf-ft)
Tighten additional 90°
Oil Pump
Exhaust Manifold
Tighten the bolts/nuts in a crisscross pattern in three steps, beginning with the inner nut.
Water Pump
