Removal And Installation
REMOVAL
Removal steps in this procedure may contain installation details.
Remove luggage compartment, front. Refer to: LUGGAGE COMPARTMENT, FRONT

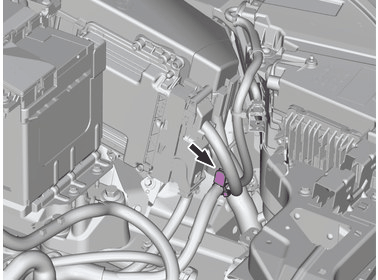

Loosen the clip.

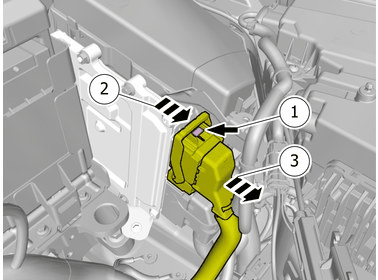

Disconnect the connector.

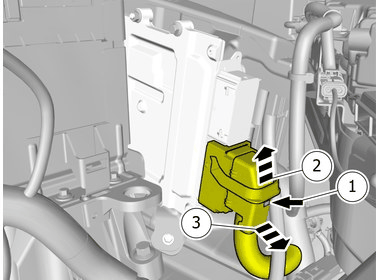

Disconnect the connector.

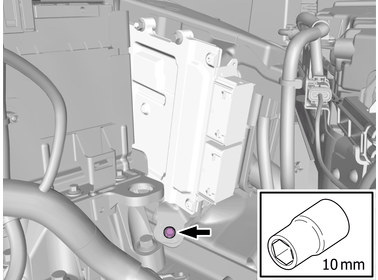

Remove the screw.
Torque: M6, 10Nm

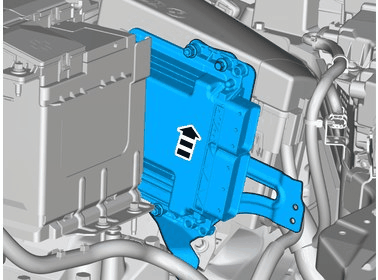

Pull the component in direction of the arrow.
TRANSFERRING COMPONENTS

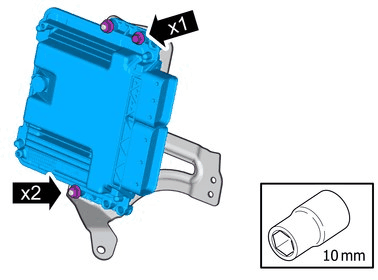

Remove the screw.
Remove the nuts.
Remove the marked part.
Torque: M6, 10Nm
INSTALLATION
To install, reverse the removal procedure.
This step is only necessary when installing a new component.
Order and download the appropriate software according to: VIDA/Software/Hardware Changes
