Engine Control Module (ECM) [2016-2020, B4204T28 | 2020, B4204T39]: Removal
Set the vehicle to Inactive mode, described in user mode, refer to:USAGE MODE
Remove the left front wheel, refer to: WHEELS

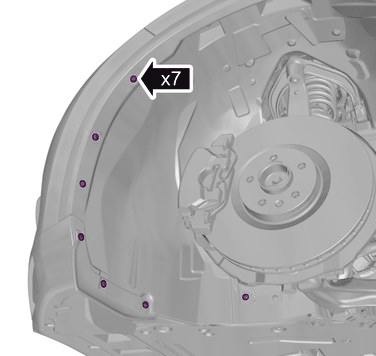

Remove the screws.

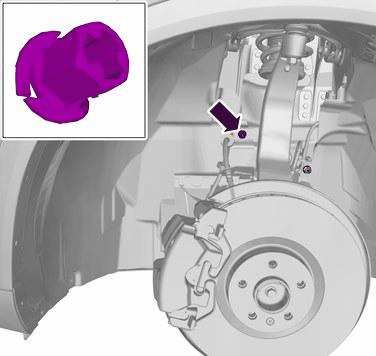

Remove the nut.

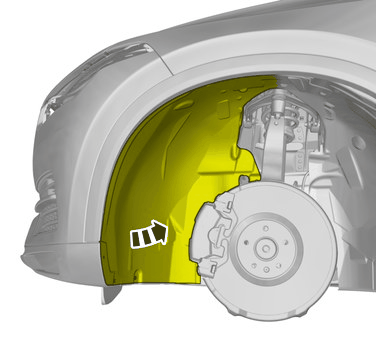

Fold the wing liner aside.
Remove the nut.

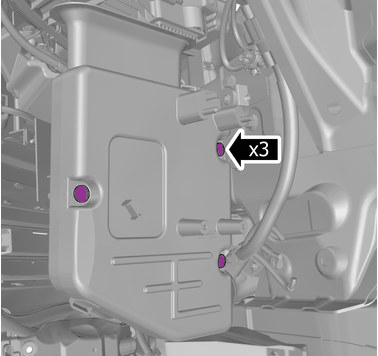

Remove the screws.

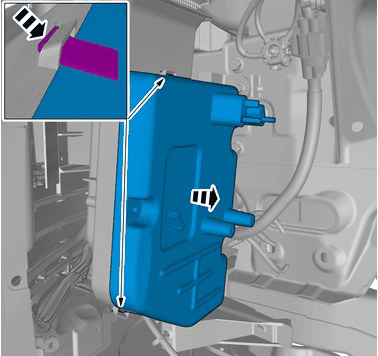

Fold marked part aside.

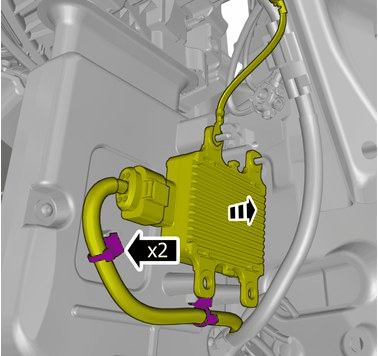

Loosen the clips.

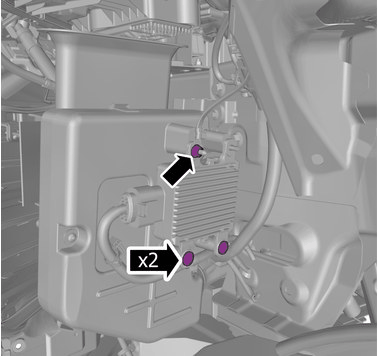

Remove the screws.
Loosen the clips.

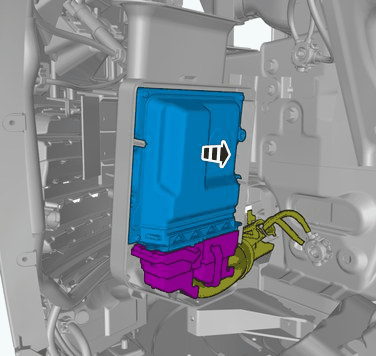

Remove the marked part.
Disconnect the connectors.
