Gear Selector Assembly

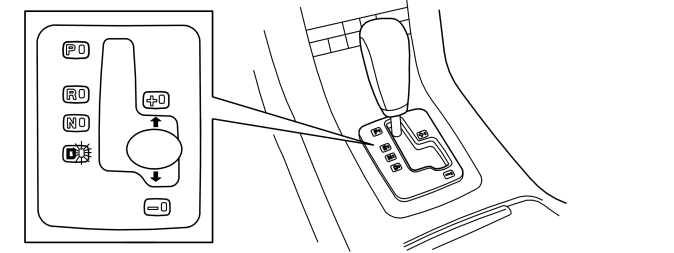

Gear selector assembly with Geartronic function
All gear selector assemblies are the Geartronic version. In addition to the selector positions P/R/N/D, there is also a position for "manual" shifting (Geartronic).
The gear selector has the following functions:
- P : Park
- R : Reverse
- N : Neutral
- D : Automatic shifting between all gears.
- +/- : Manual shift function. The indicators for both + and - are illuminated when manual mode is active.
- Three Hall sensors are mounted on the gear selector module (GSM). A permanent magnet on the gear selector actuates the sensors' output signals on the gear selector module (GSM).
