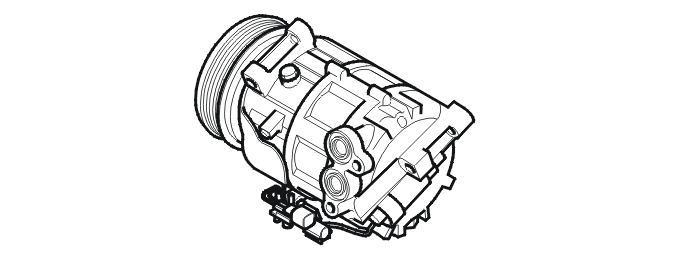

Air Conditioning (A/C) Compressor.
The air conditioning (A/C) compressor transports refrigerant, which is necessary for air conditioning (A/C) operation. It is an axial piston compressor with variable displacement. I.E. The compressor has adjustable cylinder displacement which is controlled by a check valve (solenoid). The valve, which is underneath the compressor, can be replaced.
The A/C compressor is mounted on the cylinder block and is driven by the engine's crankshaft via the auxiliaries belt.
For further information, see appropriate Design and Function information for the climate control module (CCM).
