Climate Control Module (CCM) [2017-2022]: Removal
Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]
Remove blower motor unit, front. Refer to: [BLOWER MOTOR UNIT, FRONT]

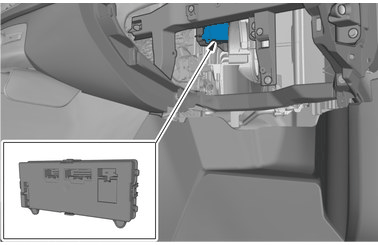

Orientation view

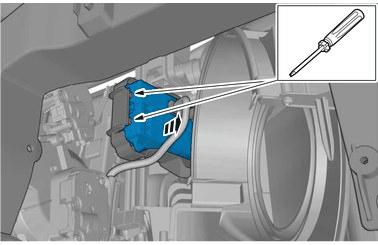

Release the locks.

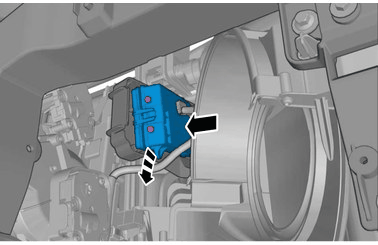

Remove the part carefully

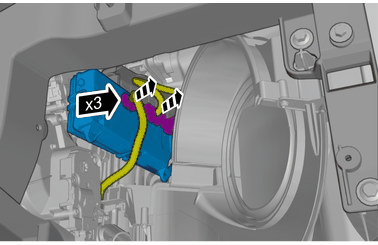

Disconnect the connectors.

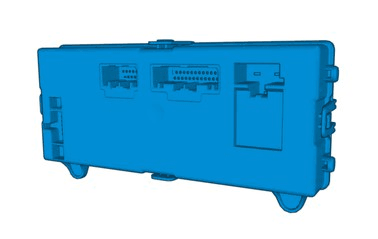

Remove the marked part.
