Engine Control Module (ECM) [2017, B4204T23 | 2017, B4204T27]: Removal
Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE
Remove the left front wheel, refer to: WHEELS
Remove the screws.
Remove the nut.

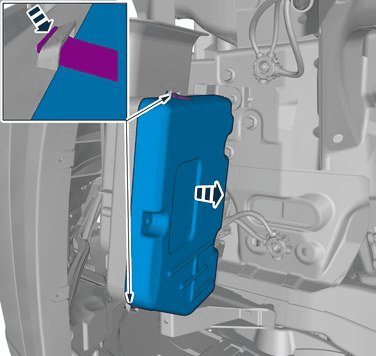

Fold the wing liner aside.

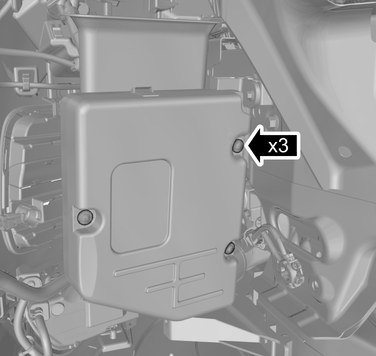

Remove the screws.
Loosen the clips.
Remove the marked part.
Disconnect the connectors.
