2017 Volvo S90 T5 InscriptionFACTORY OEM SERVICE PROCEDURE

Front Strut And Spring Assembly: Notes

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES

SPECIAL TOOLS

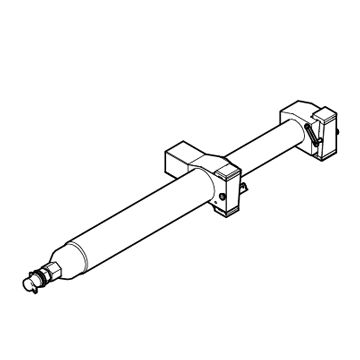

Courtesy of VOLVO CARS CORPORATION	999 7621 Position adjuster Tool number: 999 7621 Tool description: Position adjuster Tool boards: 70
Courtesy of VOLVO CARS CORPORATION	951 2911 Hydraulic piston Tool number: 951 2911 Tool description: Hydraulic piston Tool boards: 70

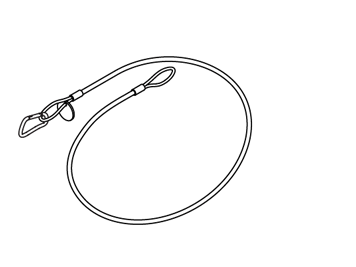

Courtesy of VOLVO CARS CORPORATION	999 7477 Wire Tool number: 999 7477 Tool description: Wire Tool boards: 70

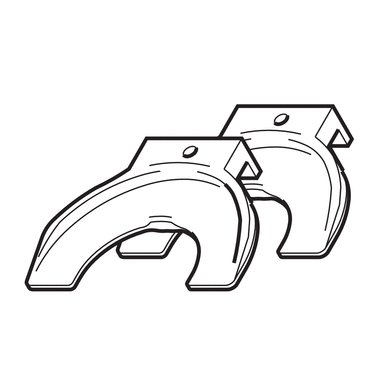

Courtesy of VOLVO CARS CORPORATION	999 7569 Claw Tool number: 999 7569 Tool description: Claw Tool boards: 70

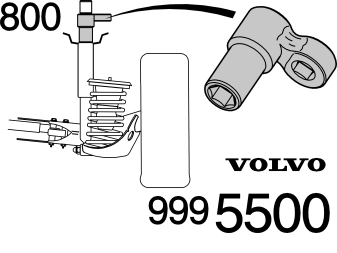

Courtesy of VOLVO CARS CORPORATION	999 5500 SOCKET UPPER NUT REAR SHOCK ABSORBER Tool number: 999 5500 Tool description: SOCKET UPPER NUT REAR SHOCK ABSORBER Tool boards: 70
