2017 Volvo S90 T5 InscriptionFACTORY OEM SERVICE PROCEDURE

Rustproofing General Information

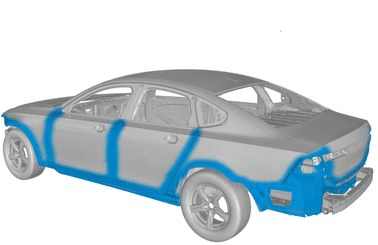

GLL1036225Courtesy of VOLVO CARS CORPORATION

Use:Β  Cavity protection, 1161682

Special Tool: 981 4075 Spray gunΒ

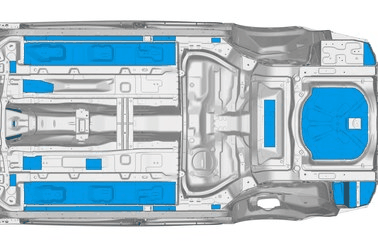

GLL1011032Courtesy of VOLVO CARS CORPORATION

Use:Β  Stone-chip protection, 1161815

Special Tool: 981 4076 Spray gunΒ

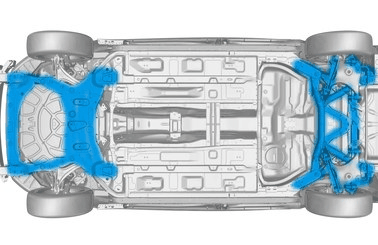

GLL1032887Courtesy of VOLVO CARS CORPORATION

Use:Β  Underbody protection, 1161298

Special Tool: 981 4076 Spray gunΒ

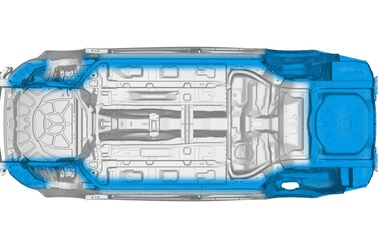

GLL1011119Courtesy of VOLVO CARS CORPORATION

Use:Β  Underbody protection, 1161298

Special Tool: 981 4076 Spray gunΒ
