2017 Volvo S60 Cross CountryFACTORY OEM SERVICE PROCEDURE
Auto Stop

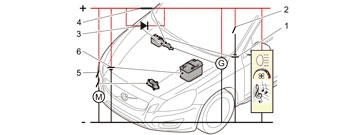

When the driver stops the vehicle at, for example, a red light, depresses the clutch pedal, shifts the gear lever into neutral and releases the clutch pedal, the system requests autostop of the engine.
- The clutch pedal is depressed.
- The vehicle is braked to 0 km/h.
- The gear level in neutral position.
- The clutch pedal released.
- Secondary battery relay (2) is not activated and is in normal position (open).
- The secondary battery (1) is not connected.
- The battery relay (main battery) (4) is not activated and is in normal position (closed).
- The vehicle is powered from the battery (main battery) (6).
- The starter motor is not activated and the starter motor relays (5) are in normal position.
- The battery diode (3) does not fulfil any function in this mode.
