Control Module
The integrated audio module (IAM) handles functions for:
- Radio reception (AM and FM)
- CD playback
- AUX playback
- RDS reception
The integrated audio module (IAM) communicates with directly connected components as well as with other control modules and components via the MOST network, which is a fiber-optic communication network.
The integrated audio module (IAM) is a slave module on the MOST network. The infotainment control module (ICM) is the master module.

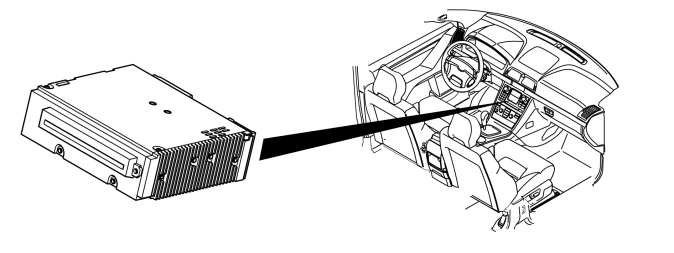

The integrated audio module (IAM) is mounted in the center console. It is integrated with the audio unit and they are replaced together.
In order to function in the MOST network, the infotainment control module (ICM) checks that the integrated audio module (IAM) has a correct serial number. If the number is incorrect, the integrated audio module (IAM) does not work.
The integrated audio module is available in three versions:
- Integrated amplifier, with integrated radio, cd player and internal amplifier.
- Without integrated amplifier, with integrated radio and cd player. The version requires an external amplifier, Audio module (AUD). Subwoofer, Subwoofer module (SUB) available as accessory.
- Without integrated amplifier, with integrated radio and cd changer. The version requires an external amplifier, Audio module (AUD). Subwoofer, Subwoofer module (SUB) available as accessory.
RDS reception (Radio Data System) is possible with FM broadcasts (market-dependent). The system is called RBDS (Radio Broadcast Data System) in USA.
From structure week 200848, versions with support for reception of digital HD-radio are available. Only applies to the USA market.
The Integrated Audio Module manages playback of compressed music formats from cd.
Support available for following formats:
From structure week 200848, there is support for playback of music via a USB/iPod-connection in the glove compartment (does not apply to Performance or CD-changers for 6 discs). Support available for the following formats:
- mp3
- wav
- wma
The speakers that are installed in the front and rear doors are connected to the control module or an external amplifier, Audio module (AUD).
The Integrated Audio Module (IAM) checks internal components, executed activations and input/output signals via its integrated diagnostics. If the control module detects a fault, a diagnostic trouble code is generated. Any diagnostic trouble codes are stored in the control module memory. The information can be read via the data link connector in the vehicle.
