Exploded View Of The Starter Motor
The starter motor consists of:
- Drive cover.
- Gear wheel.
- Solenoid.
- Battery terminal.
- Rear end and bearing.
- Carbon brush holder and carbon brushes.
- Commutator.
- Armature.
- Permanent magnet or field winding.
- Armature housing.
- Planetary train.
- Lever with freewheeling clutch.
- Pinion engaging drive.
Starter motor for V8 engine and DV6 S/S is equipped with field winding instead of permanent magnets. The field windings are electrically connected in series by carbon brushes.

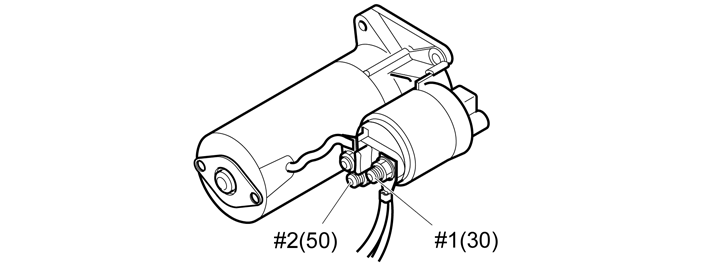

Starter motor terminals:
- #1 (30) From the battery positive terminal
- #2 (50) From starter motor relay
Ground terminal via transmission / cylinder block.
