2011 Volvo S60FACTORY OEM SERVICE PROCEDURE

Windshield Frame

Courtesy of VOLVO CARS CORPORATION

Measure from the center
Measure from the edge
Measure from the cut mark

Courtesy of VOLVO CARS CORPORATION

As measured from the bottom of the recess. If only one measurement point symbol is shown, it applies to both points. Otherwise, the symbols appear on each side of the measurement designation in the illustration.

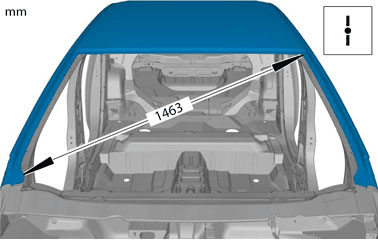

Fig 1: Windshield Frame Dimensions And Measurement Points

Courtesy of VOLVO CARS CORPORATION
