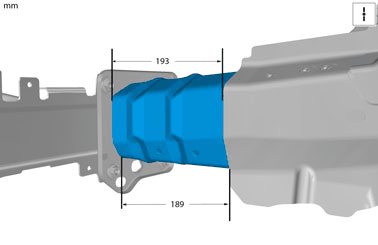

Side Members, Front
- Measure from the center
- Measure from the edge
- Measure from the cut mark
Measurement takes place from the bottom of the recess. See illustration above. If only a measuring point symbol is shown this applies to both measuring points. Otherwise the symbols are shown on one side each of the measurement designation in the figure.
