Controlling Functions

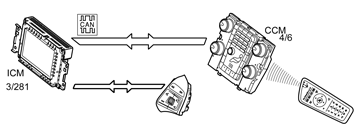

Infotainment control module (ICM) (3/281) is controlled with the keypad on Climate control module (CCM) (4/6), remote control infotainment or via Steering wheel switch right (SWSR). The signals from the keypad on Climate control module (CCM) are sent via the CAN. The signals from Steering wheel switch right are sent via LIN. The signals from remote control infotainment are sent via IR.
The functions controlled with the buttons are:
- AM
- FM
- CD
- AUX
- Eject
- Digital radio
- USB (option/accessory)
- iPod (option/accessory)
- Navigation (option)
- Phone
- DVD video
- Television (option)
- Rear seat entertainment (only XC60) (option)
For more information about the keypad on the climate control module (CCM), see Design and Function - Climate Control Module (CCM).
