2011 Volvo S40 T-5 R-DesignFACTORY OEM SERVICE PROCEDURE

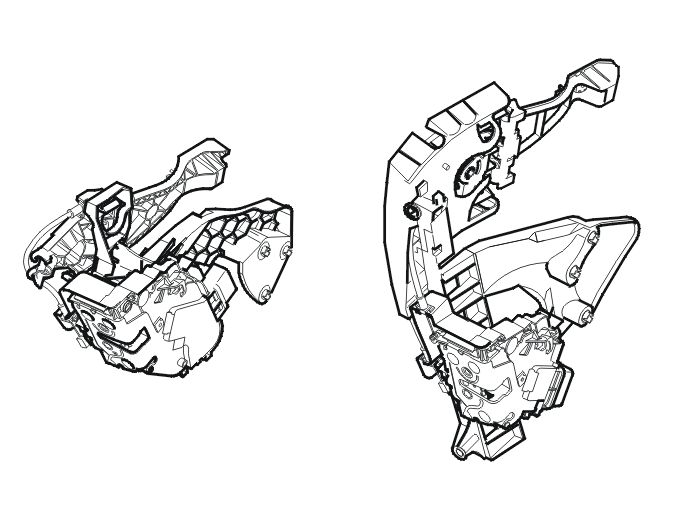

Multi-Function Bracket
The multi-function bracket:
- is the holder for the lock until the lock is installed in the door
- is the holder for the inner bracket for the exterior handle until the bracket is installed in the door
- routes water away from the lock
- protects against theft
- is the glass channel for the window.
