Transmission Control Module: Design: Lock-Up-Solenoid

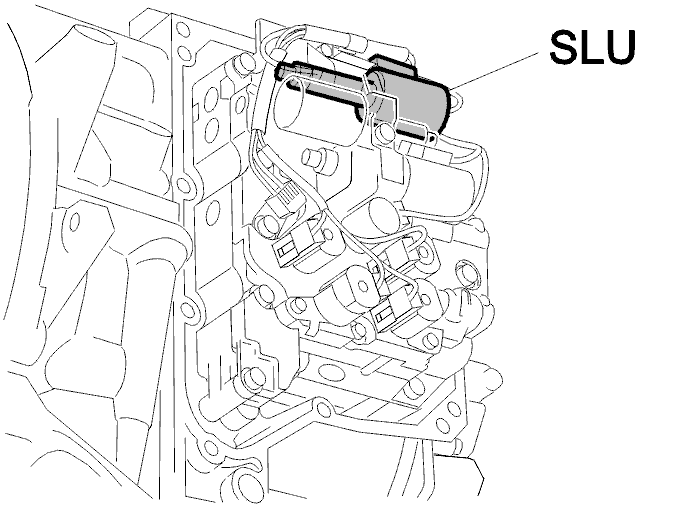

The lock-up-solenoid, is located in the gearbox control system, which is mounted on the front edge of the gearbox.
The lock-up-solenoid, consists of an electric coil that controls a hydraulic valve. The solenoid is controlled, like all linear solenoids in the gearbox, by a pulsed current with a frequency of 300Hz and grounded via the Transmission Control Module. The average value on the current signal that deploys the solenoid varies between 0.1 A and 1 A and the demand controls the deployment.
The solenoid controls the torque converter's Lock-up engagement. Engagement occurs by the solenoid pulsing, which gives a smooth engagement of the lock-up function. The solenoid allows the torque converter to work in one of three positions: "Open", "Controlled slipping" and "Locked".
The hydraulic function of the solenoid is linear.
There are diagnostics for the solenoid.
