System Overview: Notes

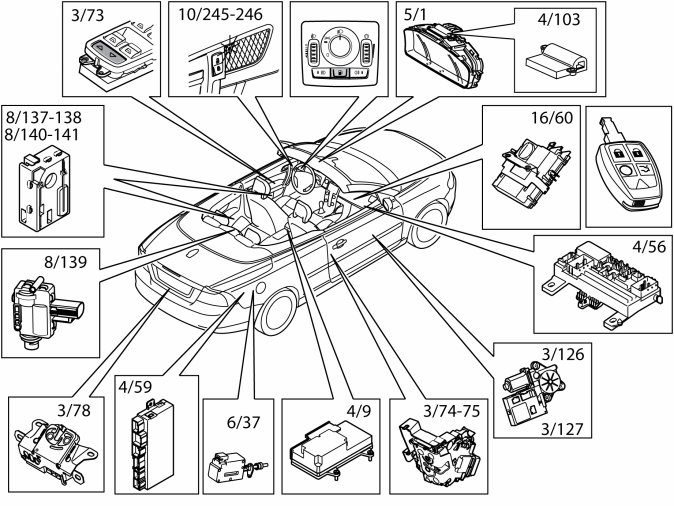

The central locking system contains a number of functions. The system is monitored by the central electronic module (CEM). The central electronic module (CEM) communicates with the constituent units, whether directly connected or connected in series, via the CAN network.
The functions covered are:
- standard locking function (total or 2 stage)
- deadlocking
- private locking mode
- unlocking the trunk lid/tailgate
- unlocking the fuel tank filler cover
- light functions (local lighting and approach lights)
- indication of the status of the doors and hatches
- remote unlocking
- automatic locking function
- re-locking
- lockable storage compartment (option C70)
- lock for ski hatch (C70).
