Controlling Functions

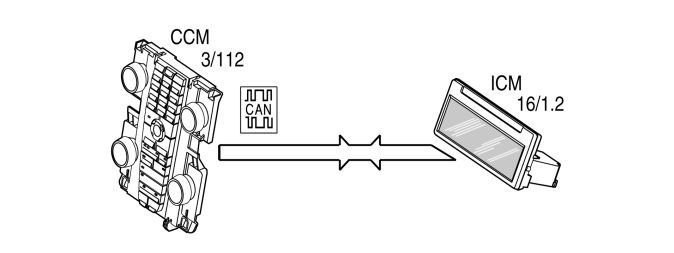

The infotainment control module (ICM) (16/1.2) does not have its own keypad. All user communication with the infotainment control module (ICM) occurs using the keypad on the climate control module (CCM) (3/112). The signals from the keypad unit are transmitted via the controller area network (CAN).
