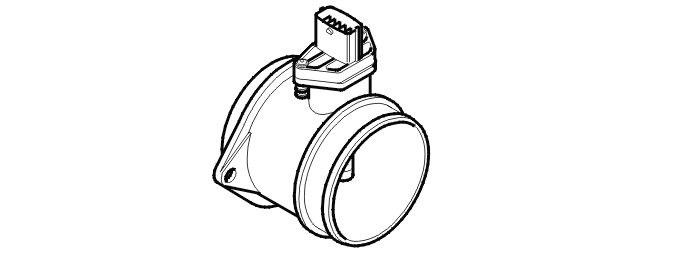

Mass Air Flow Sensor
The mass air flow (MAF) sensor gauges the air mass sucked into the engine. It continuously transmits signals to the engine control module (ECM) about the mass of the intake air. This data is used by the engine control module (ECM) to calculate:
- the injection period
- the fuel pressure
- the ignition timing
- turbocharger (TC) boost pressure (turbocharged engines only)
- the engine load.
The transmission control module (TCM) also uses this data for its gear shift calculations. This data is transmitted to the transmission control module (TCM) from the engine control module (ECM) via the high speed side of the Controller area network (CAN).
The mass air flow (MAF) sensor consists of a plastic housing with connectors, test electronics and an aluminum heat sink. The test electronics in the mass air flow (MAF) sensor consist of a hot film comprised of four resistors. The hot film is cooled by the air flow to the engine.
The mass air flow (MAF) sensor is supplied with battery voltage by the system relay and is grounded in the engine control module (ECM). The signal from the sensor is analog and varies between approximately 1-5 V depending on the air mass. Low air flow (low mass) results in low voltage, high air flow (high mass) gives high voltage. No air flow gives a reading of approximately 1 V.
The mass air flow (MAF) sensor is positioned between the air cleaner (ACL) housing and the intake manifold.
The shape of the mass air flow (MAF) sensor is slightly different on naturally aspirated engines and also contains an air temperature sensor.
The engine control module (ECM) can diagnose the mass air flow (MAF) sensor. The signal can be read using VIDA (Volvo scan tool).
