2011 Volvo C70FACTORY OEM SERVICE PROCEDURE

Standard Lock Function

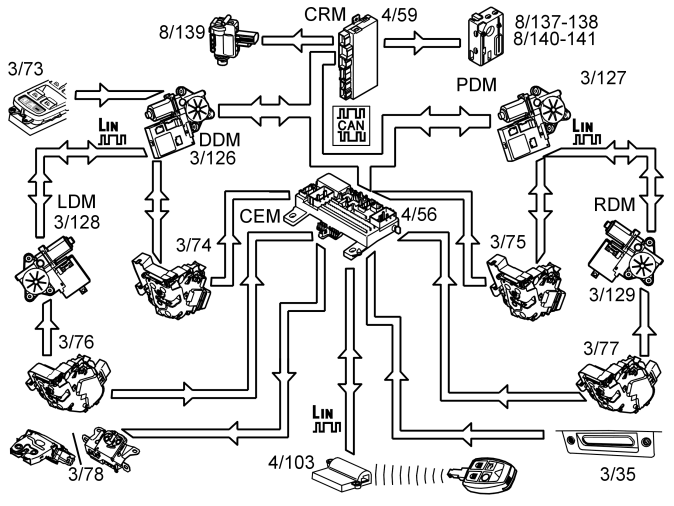

Fig 1: View Of Standard Lock Function
GLL151632Courtesy of VOLVO CARS CORPORATION

The lock function that is active when the car is delivered depends on the market. The system can be configured for total unlocking or 2 step unlocking.

Total unlocking means that all side doors are unlocked and that the tailgate/trunk lid can be opened by activating the switch on the handle.

During 2 stage unlocking, only the driver's door is unlocked first. If the remote control button is pressed again within 10 seconds, the other doors are unlocked.

Normally the vehicle is unlocked by activating the unlocking button on the remote control. This also deactivates the alarm if installed. Unlocking the car with the key blade should be seen as a last resort. If the car is unlocked with the key blade, the alarm will be triggered. The alarm can be switched off by inserting the ignition key in the ignition switch.
