Cargo Compartment Lighting

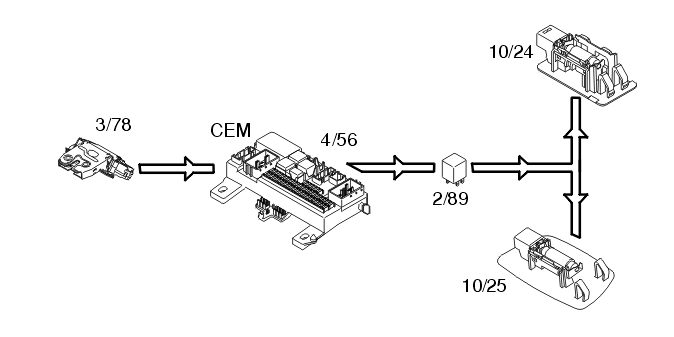

The cargo compartment lighting is activated when the trunk lid is opened. When the trunk lid opens the switch in the trunk lid lock unit (3/78) is activated.
The lighting (4 door 10/24, 5 door 10/25) is powered by the central electronic module (CEM) (4/56) via the relay for courtesy lighting (2/89).
