Control Module

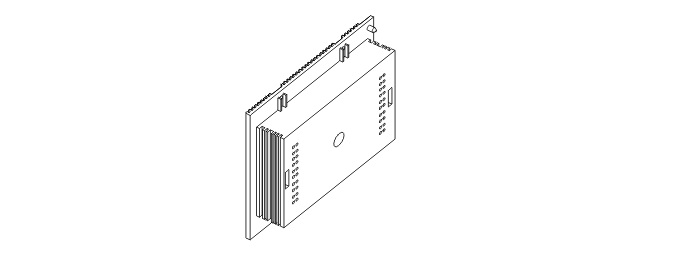

The Audio module (AUD) is an amplifier that transports the audible signal, transmitted on the MOST network, out to the directly connected loudspeakers.
If there is a subwoofer module (SUB) installed on the MOST network, the audio module can process the incoming signal and transmit it to the subwoofer module.
Audio module has an output of 4x40 W and has 5x130 W.
Each version of the audio module (AUD) has a different number of loudspeakers and different loudspeaker models.
