System Overview: Signals
The table below summarizes the input signals to and output signals from the accessory electronic module (AEM) (4/78).

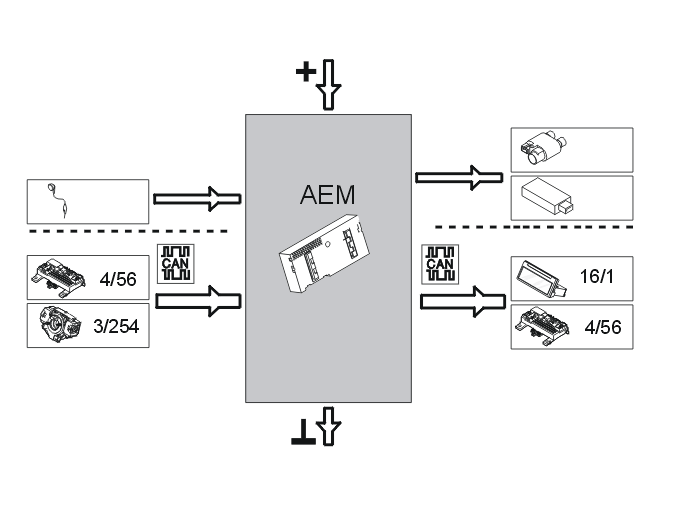

The signal types are divided into directly connected signals and Controller area network (CAN) communication. The illustration below displays the same information with the Volvo component designations.
The signals are only available for installed accessories.
| Input signals | Output signals |
Directly connected:
|
Directly connected:
|
| Via Controller Area Network (CAN) communication: | Via Controller Area Network (CAN) communication: |
Central electronic module (CEM)
(4/56):
Steering wheel module (SWM) (3/254):
|
Infotainment control module (ICM)
(16/1):
Central electronic module (CEM) (4/56):
|
