2011 Volvo C70FACTORY OEM SERVICE PROCEDURE

Collision Warning Control Module: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the combined instrument panel, see COMBINED INSTRUMENT PANEL

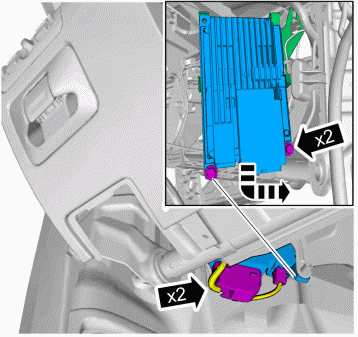

Fig 1: View of Collision Warning Control Module

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

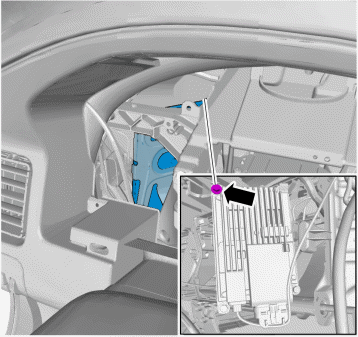

Fig 2: Removing Collision Warning Control Module

Courtesy of VOLVO CARS CORPORATION
