Checking Components And Wiring

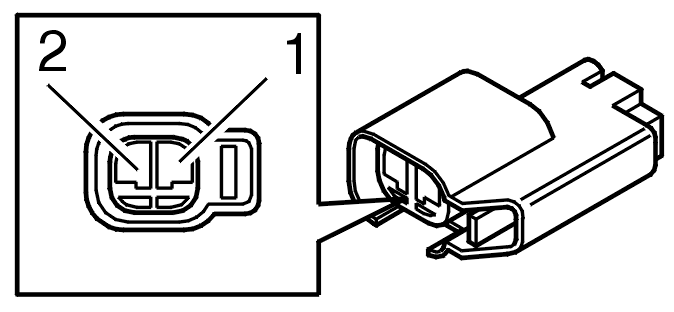

Check between terminals #1 and #2 in the injector that relates to the diagnostic trouble code (DTC). Check the resistance.
Check the cable that relates to the diagnostic trouble code (DTC). Check for a short-circuit to supply voltage.
Check between:
- Engine control module (ECM) terminal #A1 (#A1) and injector terminal #2 (ECM-200C)
- Engine control module (ECM) terminal #A25 (#A25) and injector terminal #2 (ECM-201C)
- Engine control module (ECM) terminal #A3 (#A3) and injector terminal #2 (ECM-202C)
- Engine control module (ECM) terminal #A2 (#A2) and injector terminal #2 (ECM-203C)
- Engine control module (ECM) terminal #A26 (#A26) and injector terminal #2 (ECM-204C).
Remedy as necessary.
Other information
- see CONNECTING THE BREAKOUT BOX
- see SIGNAL SPECIFICATION
- see COMPONENT SPECIFICATIONS
- see FUEL INJECTOR
- see CONTENTS
