2011 Volvo C30 R-Design, AutomaticFACTORY OEM SERVICE PROCEDURE

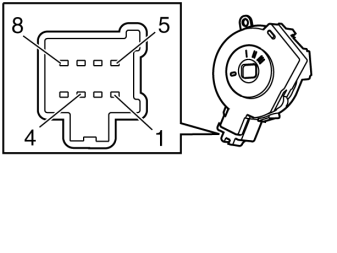

Start Control Module (SCU) (3/1): Terminal
| Connector terminal | Signal type | Other |
|---|---|---|
| #1 | Power supply +75 accessory | Out |
| #2 | Power supply Crank | Out |
| #3 | Power supply Ignition on | Out |
| #4 | Not connected | Out |
| #5 | 30 supply power supply Key in | Out |
| #6 | 30 supply power supply Immobilizer | Out |
| #7 | Battery voltage | In |
| #8 | Solenoid | Out |

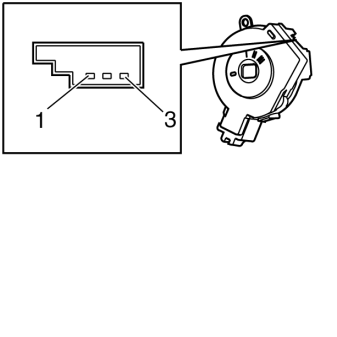

| Connector terminal | Signal type | Other |
|---|---|---|
| #1 | Ground | In |
| #2 | LIN communication | In / Out |
| #3 | Power supply Immobilizer | - |
