Checking The Component And Wiring
- Ignition off

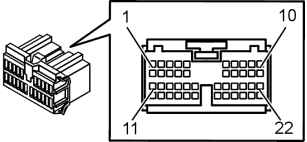

- Disconnect connector A from the phone module (PHM).
Check the loudspeaker signal cable at control module connector A. Check for a short-circuit to ground.
Check between:
- terminals #20 (#20) and #18 (#18)
- terminals #20 (#20) and #6 (#6).
Try replacing the carphone handset if no fault is found in the wiring.
Remedy as necessary.
Other information:
- see SIGNAL SPECIFICATION
- see CONNECTING THE BREAKOUT BOX
- see LOCATION OF COMPONENTS
- see PHONE MODULE (PHM)
- see TELEPHONE HANDSET
- see CONTENTS
