Integrated Audio Module (IAM) (2008-10): Design: Loudspeakers

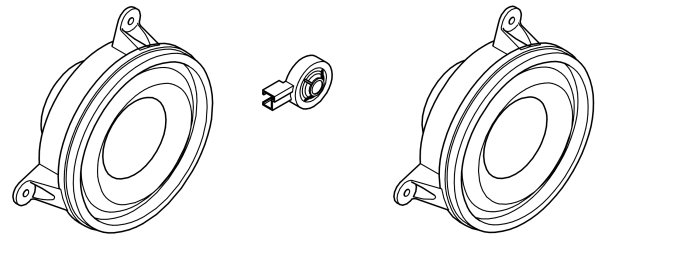

The integrated audio module (IAM) for Performance has four speakers directly connected to the control module:Β
- one pair of front loudspeakers
- one pair of rear loudspeakers.
Each speaker has an element for the entire frequency range. A tweeter for the front and rear speakers is available in certain markets.
Impedance for each speaker is 4 Ξ©.
For versions without an amplifier, the loudspeakers are connected to the Audio module (AUD).
