Remote Control

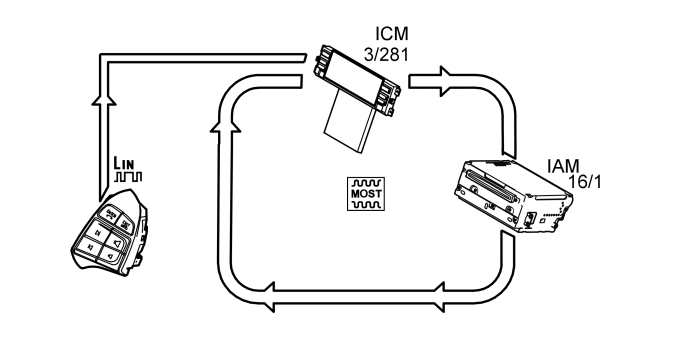

The steering wheel remote control (standard/option) is directly connected to the steering wheel switch right (SWSR). The remote control can be used to change volume (increase/decrease) and change the set radio stations. During CD or USB/iPod playback, the buttons are used for track selection. The steering wheel switch right (SWSR) communicates with the infotainment control module (ICM) via the LIN bus. ICM then sends the signals on to the integrated audio module (IAM) via the MOST network.
