Integrated Audio Module (IAM) (2008-10): Design: Microphone

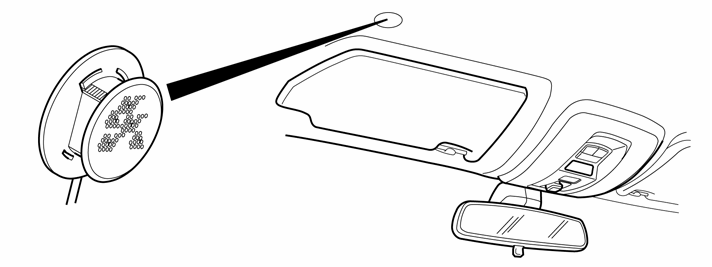

Applies to -2009

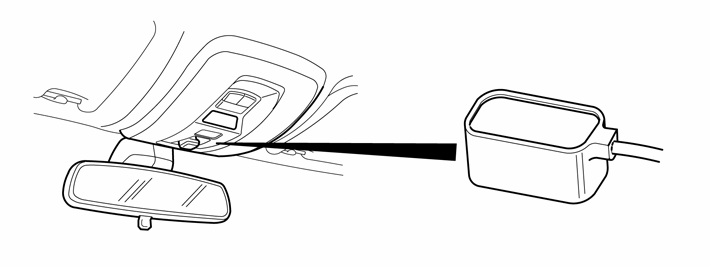

Applies to 2010-
The microphone is directly connected to the Integrated Audio Module (IAM). The microphone transmits analog signals to the control module. The microphone has phantom-feed via Integrated Audio Module (IAM).
Telephone calls can be connected via the handsfree. The microphone and speaker are used for calls via the handsfree.
