Front Fog Lamps

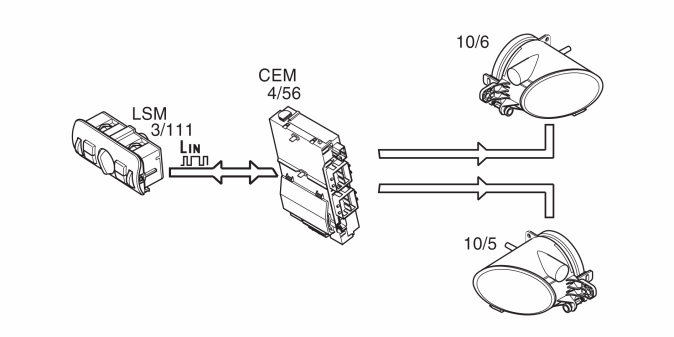

The front fog lights (10/5-6) are activated by pushing the front fog light button in the light switch module (LSM) (3/111).
The central electronic module (CEM) (4/56) receives a request to turn on the front fog lights from the light switch module (LSM) via LIN communication.
The lights are supplied power via an internal relay on the central electronic module (CEM).
