2009 Volvo XC70 Base
Internal Antennas In The Passenger Compartment: Terminal
2009 Volvo XC70 BaseSECTION Terminal

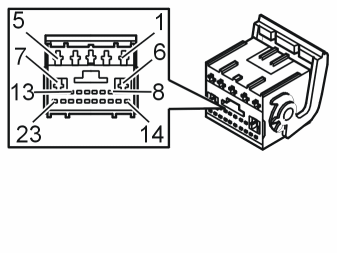

| Connector terminal | Control module terminal | Signal type | Miscellaneous |
|---|---|---|---|
| #C2 | #C1-2 | Antenna signal (-), inner antenna in cargo compartment | Signal only upon antenna activation. |
| #C4 | #C1-4 | Antenna signal (+), inner front antenna | Signal only upon antenna activation. |
| #C16 | #C1-16 | Antenna signal (-), inner front antenna | Signal only upon antenna activation. |
| #C18 | #C1-18 | Antenna signal (+), inner antenna in cargo compartment | Signal only upon antenna activation. |
