2009 Volvo S80 V8FACTORY OEM SERVICE PROCEDURE

Pedal Position Sensor 7/124: Terminal

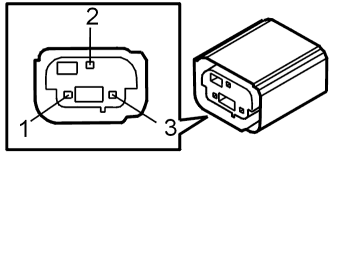

Fig 1: Identifying Pedal Position Sensor Terminals

Courtesy of VOLVO CARS CORPORATION

Connector terminal	Control module terminal	Signal type	Ignition on	Other
#1	#26	Power supply	U = 5 V	The sensor receives 5 V from the control module.
#2	#27	Signal ground	U = 0 V	-
#3	#38	Signal voltage	U = 0.15 - 4.85 V	-
