The table below summarizes the input signals to and output signals from the trailer module (TRM). The signal types are divided into directly connected signals and CAN communication. Fig 1 displays the same information with the Volvo component designations.

Input signals	Output signals
Directly connected:	Directly connected:
Stop lamp signal from Central electronic module (CEM) (4/56) via left tail lamp.	To tow hitch cable harness: Right turn signal lamp Left turn signal lamp Stop lamp right Stop lamp left Parking lamps Back-up lamp Fog lamps Charging (+12 V voltage).
Via Controller Area Network (CAN) communication:	Via Controller Area Network (CAN) communication:
Central electronic module (CEM) (4/56)	Central electronic module (CEM) (4/56) Driver information module (DIM) (5/1) Differential electronic module (DEM) (4/82) (option) Parking Assistance Module (PAM) (4/86) (option) Parking Assistance Camera (PAC) (4/120) (option)

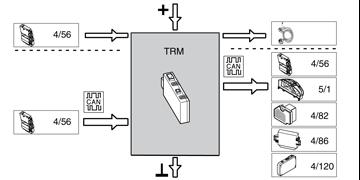

Fig 1: Identifying Input Signals And Output Signals From Trailer Module (TRM)

Courtesy of VOLVO CARS CORPORATION
